ES1J

Part Number
ES1J
Manufacturer HY Electronic (Cayman) Limited
Other Part Numbers
4024-ES1JTB-ND
4024-ES1JTB
Description Surface Mount Super Fast Glass P
Detailed Description Diode 600 V 1A Surface Mount SMA
Datasheet Datasheet

Product Attributes

Category
Manufacturer HY Electronic (Cayman) Limited
Series
Packaging
Tape & Box (TB)
Part Status Active

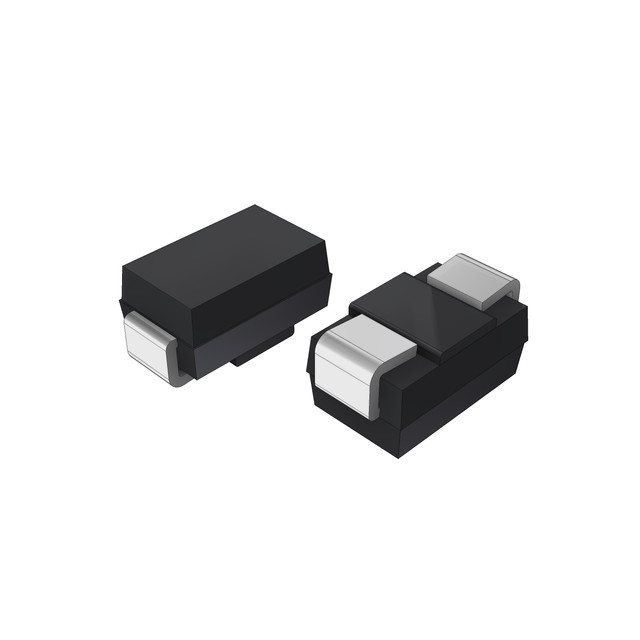

Package / Case DO-214AC, SMA
Mounting Type Surface Mount
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Technology Standard
Capacitance @ Vr, F 25pF @ 4V, 1MHz
Current - Average Rectified (Io) 1A
Supplier Device Package SMA
Operating Temperature - Junction -55°C ~ 150°C
Grade Automotive
Voltage - DC Reverse (Vr) (Max) 600 V
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 1 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Qualification AEC-Q101

Documents & Media

RESOURCE TYPE LINK
Datasheets ES1J

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0070
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
RoHS Status RoHS Compliant
