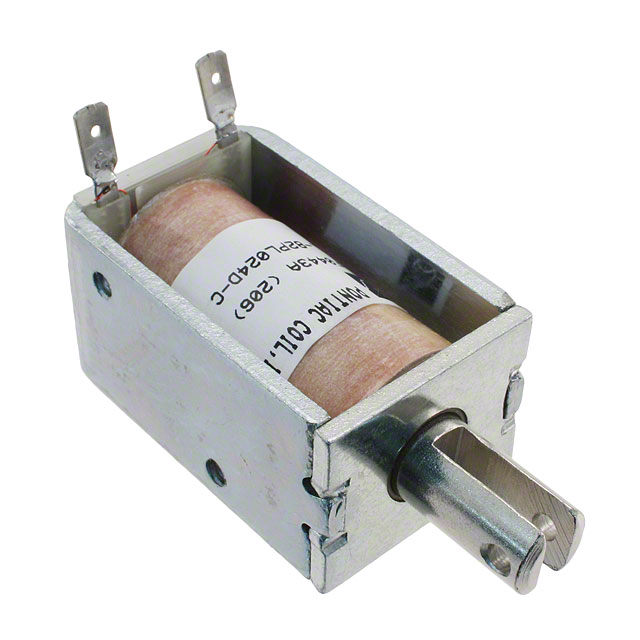

F0443A

Part Number
F0443A
Manufacturer Pontiac Coil, Inc.
Other Part Numbers
527-1014-ND
527-1014
L-82PL024D-C
Description SOLENOID PULL CONTINUOUS 24V
Detailed Description Continuous Duty Solenoid Open Frame (Pull) Type 0.750" (19.05mm) Stroke 24VDC Chassis Mount
Manufacturer Standard Lead Time 11 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Pontiac Coil, Inc.
Series
L-82
Packaging
Bulk
Part Status Active
Voltage - Rated 24VDC
Size / Dimension 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm)
Mounting Type Chassis Mount
Type Open Frame (Pull)
Termination Style Quick Connect - 0.187" (4.7mm)
Duty Cycle Continuous
DC Resistance (DCR) 76.8Ohm
Stroke Length 0.750" (19.05mm)
Technology Electromechanical
Diameter - Shaft 0.438" (11.13mm)
Shaft Detail Clevis
Power (Watts) 7.5 W

Documents & Media

RESOURCE TYPE LINK
Datasheets F0443A
Datasheets Stroke Length vs Force Guide

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8505.90.7501
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant
