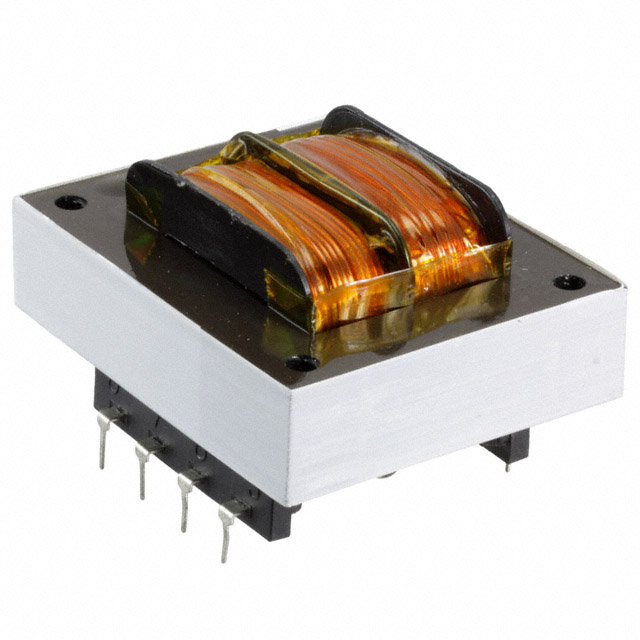

Part Number | F20-055 |
---|---|
Manufacturer | Triad Magnetics |
Other Part Numbers | 237-1809-ND 237-1809 |
Description | PWR XFMR LAMINATED 1.1VA TH |
Manufacturer Standard Lead Time | 23 weeks |
Category | ||
---|---|---|
Manufacturer | Triad Magnetics | |
Series | Split Pack™, Class 2/3, F | |
Packaging | Box | |
Part Status | Active | |
Size / Dimension | 34.93mm L x 28.58mm W | |
Mounting Type | Through Hole | |
Type | Laminated Core | |
Weight | 0.17 lb (77.11 g) | |
Termination Style | PC Pin | |
Primary Winding(s) | Single | |
Secondary Winding(s) | Dual | |
Power - Max | 1.1VA | |
Voltage - Isolation | 2500Vrms | |
Current - Output (Max) | Parallel 110mA, Series 55mA | |
Voltage - Primary | 115V | |
Height - Seated (Max) | 23.80mm | |
Voltage - Secondary (Full Load) | Parallel 10V, Series 20V | |
Center Tap | No |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.31.4035 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
10 | $5.71 | $57.10 |
