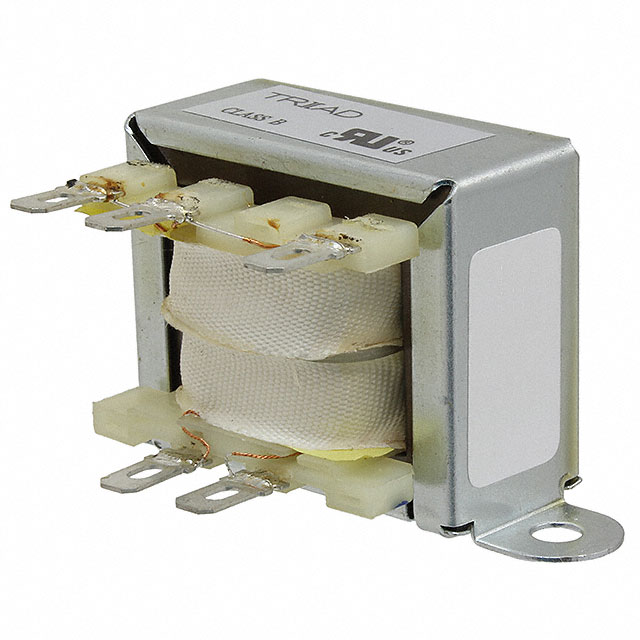

F4-16

Part Number
F4-16
Manufacturer Triad Magnetics
Other Part Numbers
237-1682-ND
237-1682
Description PWR XFMR LAMINATED 6VA CHAS MT
Manufacturer Standard Lead Time 23 weeks

Product Attributes

Category
Manufacturer Triad Magnetics
Series
Quick Pack
Packaging
Bulk
Part Status Active
Size / Dimension 60.33mm L x 31.75mm W
Mounting Type Chassis Mount
Type Laminated Core
Weight 0.44 lb (199.58 g)
Termination Style Solder, Quick Connect - 0.187" (4.7mm)
Primary Winding(s) Single
Secondary Winding(s) Single
Power - Max 6VA
Voltage - Isolation 2500VAC
Current - Output (Max) 400mA
Voltage - Primary 115V
Height - Seated (Max) 34.93mm
Voltage - Secondary (Full Load) 16V
Center Tap Yes

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.31.4035
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
