FAN53528GUC48X _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	FAN53528GUC48X
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-FAN53528GUC48X-ND ONSFSCFAN53528GUC48X 2156-FAN53528GUC48X
Description	IC REG BUCK PROG 0.35V 15WLCSP
Detailed Description	Buck Switching Regulator IC Positive Programmable 0.35V 1 Output 3A 15-UFBGA, WLCSP

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Fairchild Semiconductor
Series
Packaging		Bulk
Part Status		Active

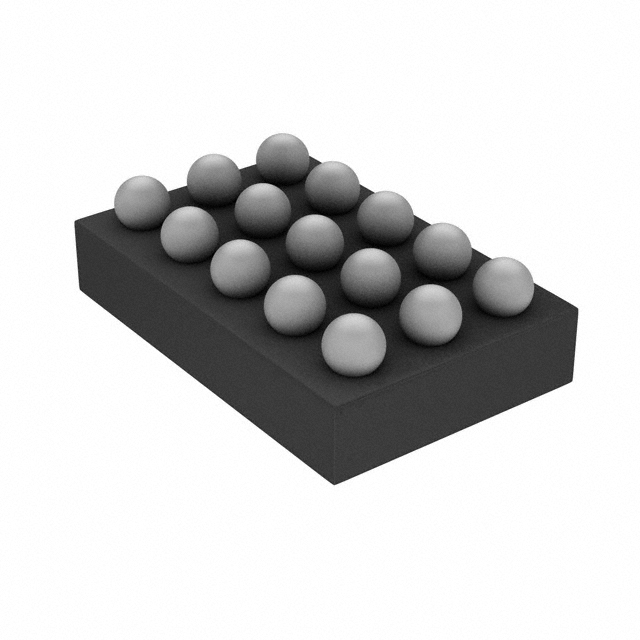

Package / Case		15-UFBGA, WLCSP
Output Type		Programmable
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Down
Current - Output		3A
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Frequency - Switching		2.4MHz
Voltage - Input (Max)		5.5V
Topology		Buck
Supplier Device Package		15-WLCSP (2.02x1.31)
Synchronous Rectifier		Yes
Voltage - Output (Max)		1.14V
Voltage - Input (Min)		2.5V
Voltage - Output (Min/Fixed)		0.35V
