FCP7N60 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	FCP7N60
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	FCP7N60OS-ND FCP7N60-ND FCP7N60_NL FCP7N60-NDR FCP7N60_NL-ND FCP7N60OS
Description	MOSFET N-CH 600V 7A TO220-3
Detailed Description	N-Channel 600 V 7A (Tc) 83W (Tc) Through Hole TO-220-3
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Sanyo Semiconductor/onsemi
Series		SuperFET™
Packaging		Tube
Part Status		Not For New Designs

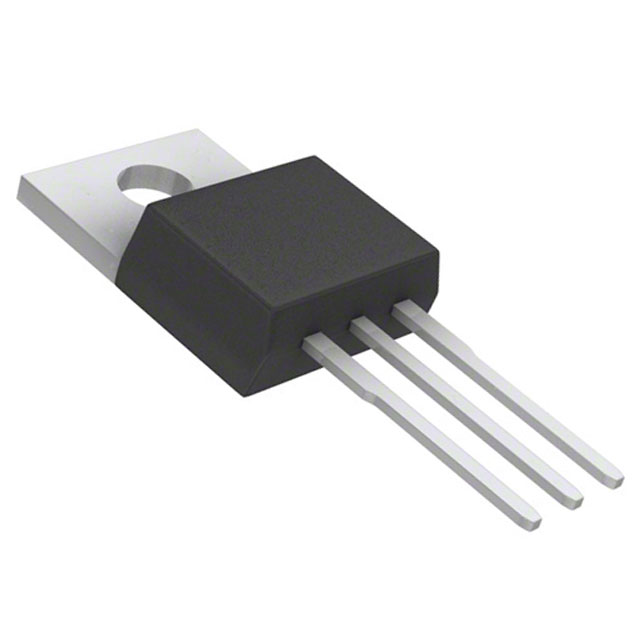

Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		7A (Tc)
Rds On (Max) @ Id, Vgs		600mOhm @ 3.5A, 10V
Power Dissipation (Max)		83W (Tc)
Vgs(th) (Max) @ Id		5V @ 250µA
Supplier Device Package		TO-220-3
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±30V
Drain to Source Voltage (Vdss)		600 V
Gate Charge (Qg) (Max) @ Vgs		30 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		920 pF @ 25 V

RESOURCE TYPE		LINK
Datasheets		FCP7N60
Datasheets		onsemi RoHS
Datasheets		onsemi REACH
Datasheets		Material Declaration FCP7N60
Datasheets		Logo 17/Aug/2017
Datasheets		Mult Dev Asembly Chg 7/May/2020
Datasheets		Tape and Box/Reel Barcode Update 07/Aug/2014
Datasheets		Mult Devices 24/Oct/2017
Datasheets		TO220B03 Pkg Drawing

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

Not recommended for new design, minimums may apply.
