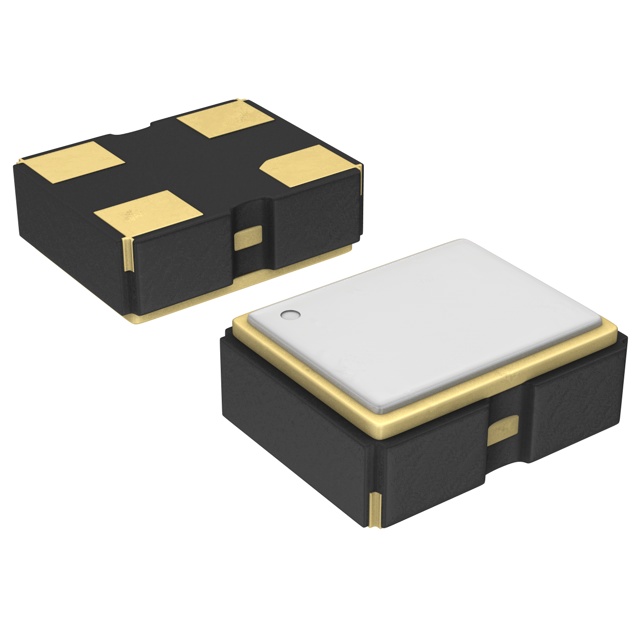

FD4470001

FD4470001

Part Number	FD4470001
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	FD4470001-ND
Description	XTAL OSC XO 44.7360MHZ CMOS SMD
Detailed Description	44.736 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series		SaRonix-eCera™ FD
Packaging		Bulk
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.197" L x 0.126" W (5.00mm x 3.20mm)
Mounting Type		Surface Mount
Output		CMOS
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		-20°C ~ 70°C
Frequency Stability		±25ppm
Voltage - Supply		3.3V
Current - Supply (Max)		15mA
Current - Supply (Disable) (Max)		10µA
Height - Seated (Max)		0.051" (1.30mm)
Frequency		44.736 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		FD4470001
Datasheets		Oscillator Qualification Report
Datasheets		XO Jitter Information
Datasheets		Diodes Environmental Compliance Cert
Datasheets		Labeling Change 30/Sep/2016
Datasheets		Labeling Change Revision 12/Apr/2017

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
