FDD6680AS _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	FDD6680AS
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-FDD6680AS-ND 2156-FDD6680AS ONSONSFDD6680AS
Description	MOSFET N-CH 30V 55A TO252
Detailed Description	N-Channel 30 V 55A (Ta) 60W (Ta) Surface Mount TO-252 (DPAK)

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Fairchild Semiconductor
Series		PowerTrench®, SyncFET™
Packaging		Bulk
Part Status		Active

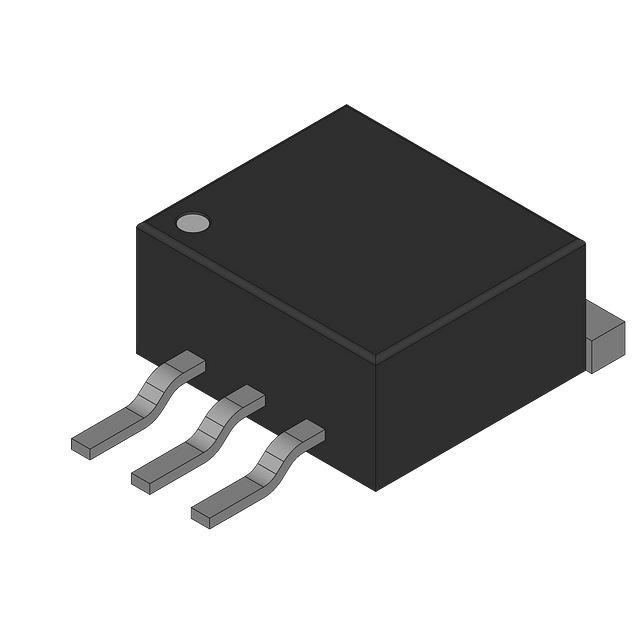

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		55A (Ta)
Rds On (Max) @ Id, Vgs		10.5mOhm @ 12.5A, 10V
Power Dissipation (Max)		60W (Ta)
Vgs(th) (Max) @ Id		3V @ 1mA
Supplier Device Package		TO-252 (DPAK)
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		29 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		1200 pF @ 15 V

RESOURCE TYPE		LINK

QUANTITY	UNIT PRICE	EXT PRICE
528	$0.57	$300.96
