FDS6299S _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	FDS6299S
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-FDS6299S-ND FAIFSCFDS6299S 2156-FDS6299S-FSTR-ND 2156-FDS6299S
Description	MOSFET N-CH 30V 21A 8SOIC
Detailed Description	N-Channel 30 V 21A (Ta) 3W (Ta) Surface Mount 8-SOIC

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Fairchild Semiconductor
Series		PowerTrench®
Packaging		Bulk
Part Status		Obsolete

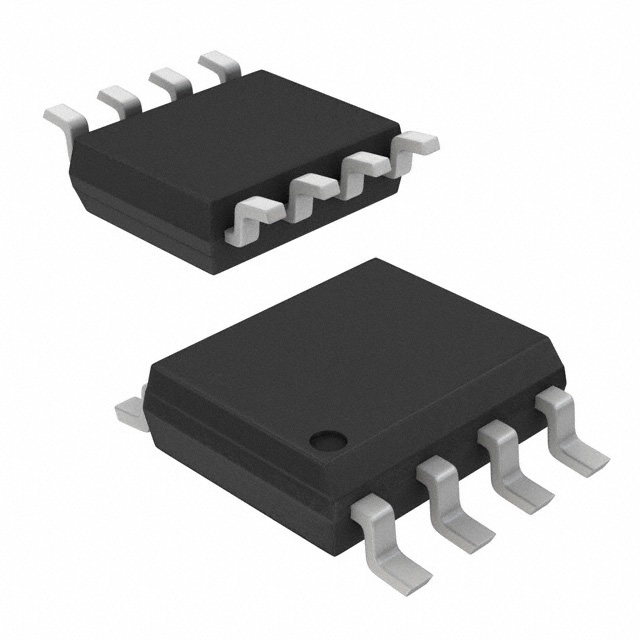

Package / Case		8-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		21A (Ta)
Rds On (Max) @ Id, Vgs		3.9mOhm @ 21A, 10V
Power Dissipation (Max)		3W (Ta)
Vgs(th) (Max) @ Id		3V @ 1mA
Supplier Device Package		8-SOIC
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		81 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		3880 pF @ 15 V

RESOURCE TYPE		LINK

This product is no longer manufactured.
