Part Number	FDZ206P
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-FDZ206P-ND 2156-FDZ206P-FSTR-ND 2156-FDZ206P FAIFSCFDZ206P
Description	MOSFET P-CH 20V 13A 30BGA
Detailed Description	P-Channel 20 V 13A (Ta) 2.2W (Ta) Surface Mount 30-BGA (4x3.5)

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Fairchild Semiconductor
Series		PowerTrench®
Packaging		Bulk
Part Status		Obsolete

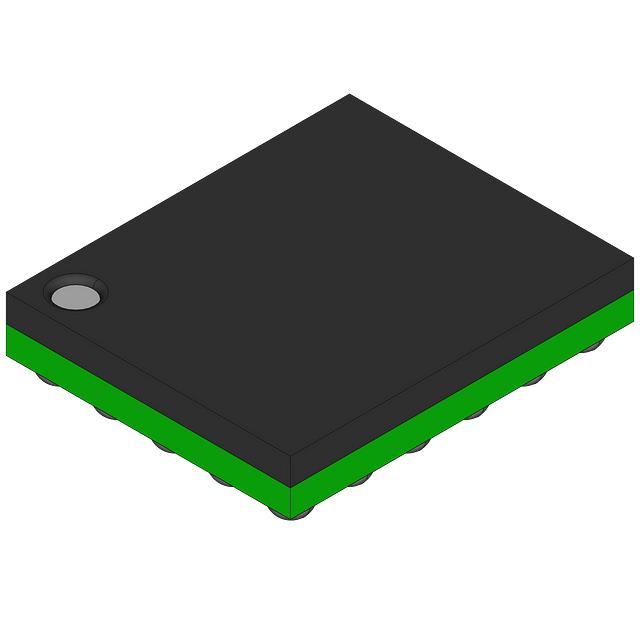

Package / Case		30-WFBGA
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		13A (Ta)
Rds On (Max) @ Id, Vgs		9.5mOhm @ 13A, 4.5V
Power Dissipation (Max)		2.2W (Ta)
Vgs(th) (Max) @ Id		1.5V @ 250µA
Supplier Device Package		30-BGA (4x3.5)
Drive Voltage (Max Rds On, Min Rds On)		2.5V, 4.5V
Vgs (Max)		±12V
Drain to Source Voltage (Vdss)		20 V
Gate Charge (Qg) (Max) @ Vgs		53 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds		4280 pF @ 10 V

RESOURCE TYPE		LINK

This product is no longer manufactured.
