FGA50N100BNTTU

Part Number
FGA50N100BNTTU
Manufacturer Fairchild Semiconductor
Other Part Numbers
2156-FGA50N100BNTTU-FS-ND
2156-FGA50N100BNTTU-FS
FAIFSCFGA50N100BNTTU
Description IGBT, 50A, 1000V, N-CHANNEL

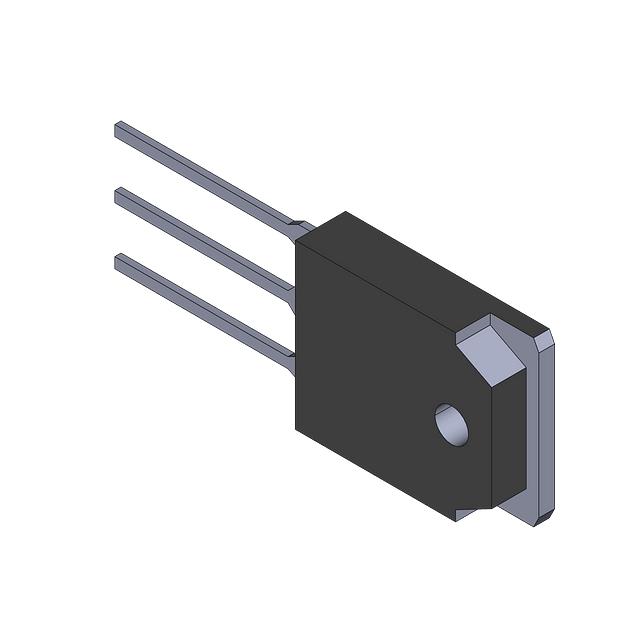

Detailed Description IGBT NPT and Trench 1000 V 50 A 156 W Through Hole TO-3P

Product Attributes

Category
Manufacturer Fairchild Semiconductor
Series
Packaging
Tube
Part Status Obsolete
Package / Case TO-3P-3, SC-65-3
Mounting Type Through Hole
Operating Temperature -55°C ~ 150°C (TJ)
Input Type Standard
Vce(on) (Max) @ Vge, Ic 2.9V @ 15V, 60A
Supplier Device Package TO-3P
IGBT Type NPT and Trench
Td (on/off) @ 25°C 34ns/243ns
Test Condition 600V, 60A, 10Ohm, 15V
Gate Charge 257 nC
Current - Collector (Ic) (Max) 50 A
Voltage - Collector Emitter Breakdown (Max) 1000 V
Current - Collector Pulsed (Icm) 200 A
Power - Max 156 W

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
