FIT68-6

Part Number
FIT68-6
Manufacturer Triad Magnetics
Other Part Numbers
237-1194-ND
237-1194-NDR
237-1194
10575
FIT686
Description FIXED IND 24.31UH 6.8A 20.2 MOHM

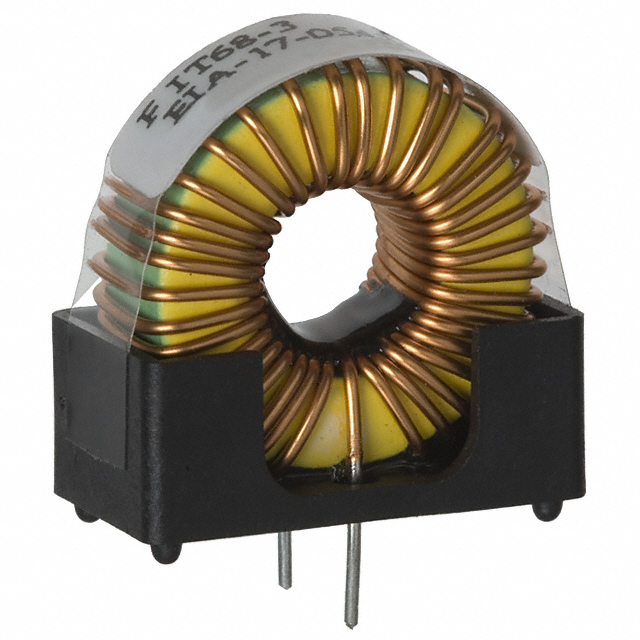

Detailed Description 24.31 µH Unshielded Toroidal Inductor 6.8 A 20.2mOhm Max Radial, Vertical (Open)
Manufacturer Standard Lead Time 23 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Triad Magnetics
Series
FIT
Packaging
Bulk
Part Status Active
Package / Case Radial, Vertical (Open)
Size / Dimension 0.875" L x 0.475" W (22.22mm x 12.07mm)
Mounting Type Through Hole
Shielding Unshielded
Type Toroidal
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 20.2mOhm Max
Material - Core Iron Powder
Inductance Frequency - Test 10 kHz
Height - Seated (Max) 0.950" (24.13mm)
Inductance 24.31 µH
Current Rating (Amps) 6.8 A

Documents & Media

RESOURCE TYPE LINK
Datasheets FIT68-6
Datasheets Standard Part Warranty Terms
Datasheets RoHS Statement
Datasheets FIT68 Series

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
