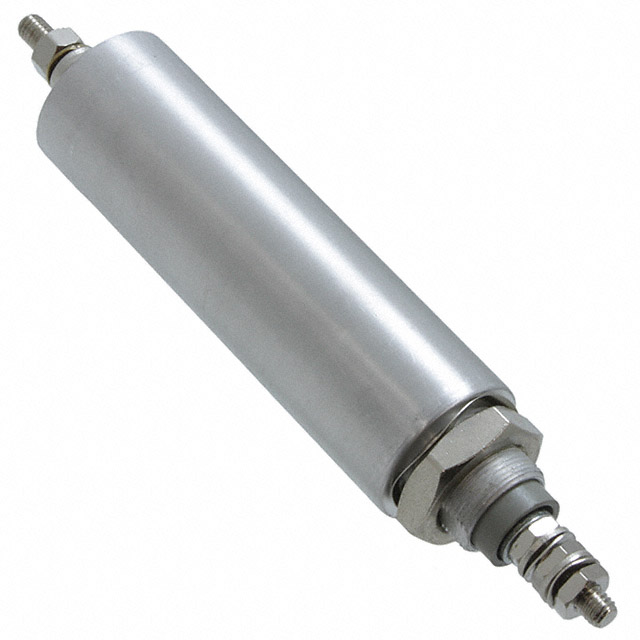

FN7611-63-M6S

Part Number
FN7611-63-M6S
Manufacturer Schaffner EMC, Inc.
Other Part Numbers
817-1751-ND
297-615
801429
FN761163M6S
FN7611-63-M6S-ND
817-1751
Description FILTER LC(PI) 186NH/0.015UH BOLT
Detailed Description LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 186nH, C = 0.015µF 63 A Axial - Threaded Terminals
Datasheet Datasheet

Product Attributes

Category
Manufacturer Schaffner EMC, Inc.
Series
FN 761X
Packaging
Tray
Part Status Obsolete
Voltage - Rated 1000V (1kV)
Package / Case Axial - Threaded Terminals
Mounting Type Bolt Mount
Type Low Pass
Operating Temperature -40°C ~ 100°C
Values L = 186nH, C = 0.015µF
Filter Order 3rd
Applications Data Lines for Mobile Devices
Technology LC (Pi)
Resistance - Channel (Ohms) 0.00047
ESD Protection No
Number of Channels 1
Current 63 A

Documents & Media

RESOURCE TYPE LINK
Datasheets FN7611-63-M6S

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8548.00.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS Compliant

Obsolete

This product is no longer manufactured.
