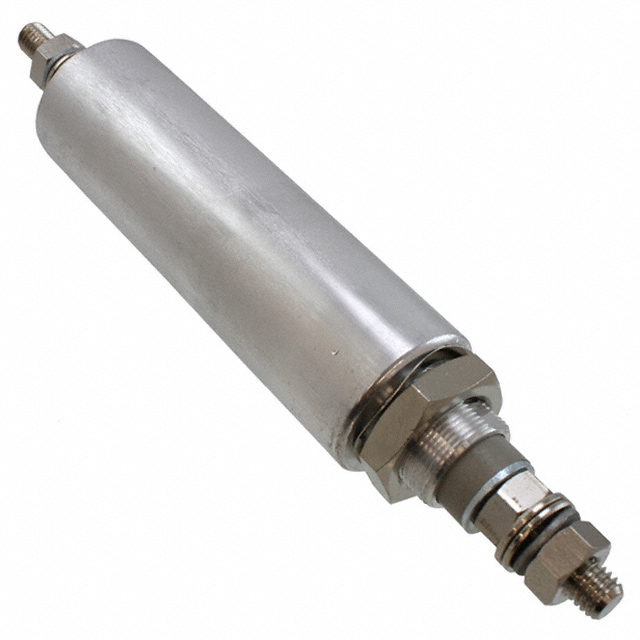

FN7660-100-M8

FN7660-100-M8

Part Number	FN7660-100-M8
Manufacturer	Schaffner EMC, Inc.
Other Part Numbers	817-1756-ND FN7660100M8 297-947 817-1756 FN7660-100-M8-ND 801813
Description	FILTER LC(PI) 124NH/0.47UF BOLT
Detailed Description	LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 124nH, C = 0.47µF 100 A Axial - Threaded Terminals
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters EMI/RFI Filters (LC, RC Networks)
Manufacturer		Schaffner EMC, Inc.
Series		FN 766X
Packaging		Tray
Part Status		Active
Voltage - Rated		130V
Package / Case		Axial - Threaded Terminals
Size / Dimension		1.260" Dia x 4.724" L (32.00mm x 120.00mm)
Mounting Type		Bolt Mount
Type		Low Pass
Operating Temperature		-40°C ~ 100°C
Values		L = 124nH, C = 0.47µF
Filter Order		3rd
Applications		Data Lines for Mobile Devices
Technology		LC (Pi)
Resistance - Channel (Ohms)		0.00025
ESD Protection		No
Number of Channels		1
Current		100 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		FN7660-100-M8
Datasheets		RoHS Declaration of Conformity
Datasheets		Schaffner REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 10

Can ship immediately.
