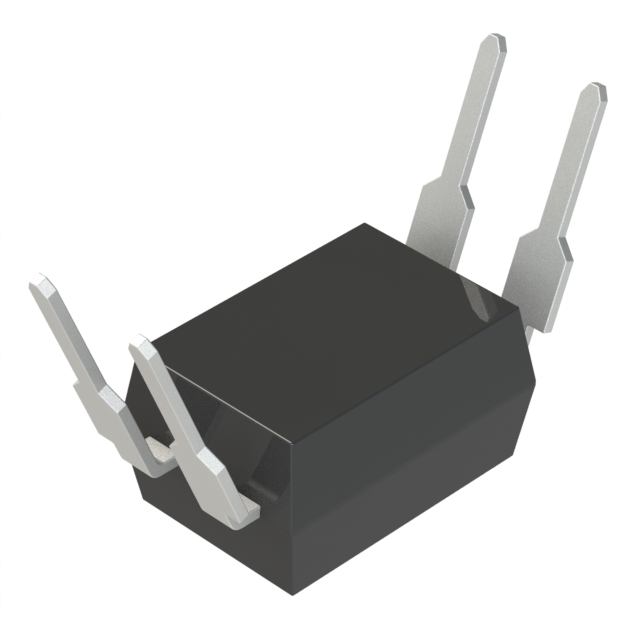

FOD785CSD _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	FOD785CSD
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	488-FOD785CSDTR-ND 488-FOD785CSDCT-ND 488-FOD785CSDDKR-ND 488-FOD785CSDDKR 488-FOD785CSDCT 488-FOD785CSDTR
Description	4PB TR T&R
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-PDIP-GW
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 110°C
Voltage - Forward (Vf) (Typ)		1.2V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		200% @ 5mA
Vce Saturation (Max)		200mV
Current Transfer Ratio (Max)		400% @ 5mA
Supplier Device Package		4-PDIP-GW
Voltage - Output (Max)		80V
Rise / Fall Time (Typ)		18µs, 18µs (Max)
Number of Channels		1
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK
Datasheets		FOD785CSD

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
