FODM3052R4 _ Triac, SCR Output Optoisolators_Optoisolators_Isolators

Part Number	FODM3052R4
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	FODM3052R4-ND FODM3052R4-NDR FODM3052R4_NL-ND FODM3052R4FS FODM3052R4FS-ND FODM3052R4_NL
Description	OPTOISOLATOR 3.75KV TRIAC 4MFP
Detailed Description	Optoisolator Triac Output 3750Vrms 1 Channel 4-SMD
Datasheet	Datasheet

Category		Isolators Optoisolators Triac, SCR Output Optoisolators
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tape & Reel (TR)
Part Status		Obsolete

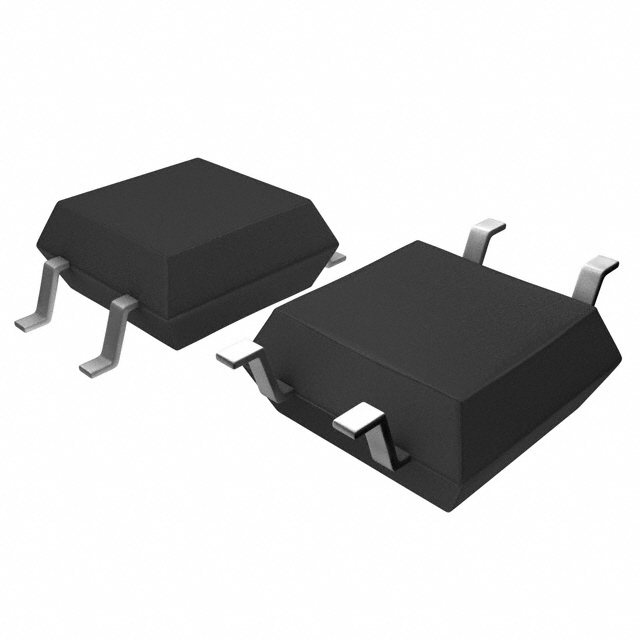

Package / Case		4-SMD, Gull Wing
Output Type		Triac
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Voltage - Isolation		3750Vrms
Approval Agency		BSI, CSA, UL
Current - Hold (Ih)		300µA (Typ)
Supplier Device Package		4-SMD
Zero Crossing Circuit		No
Static dV/dt (Min)		1kV/µs
Current - LED Trigger (Ift) (Max)		10mA
Number of Channels		1
Current - On State (It (RMS)) (Max)		70 mA
Voltage - Off State		600 V
Current - DC Forward (If) (Max)		60 mA

RESOURCE TYPE		LINK
Datasheets		onsemi RoHS

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
