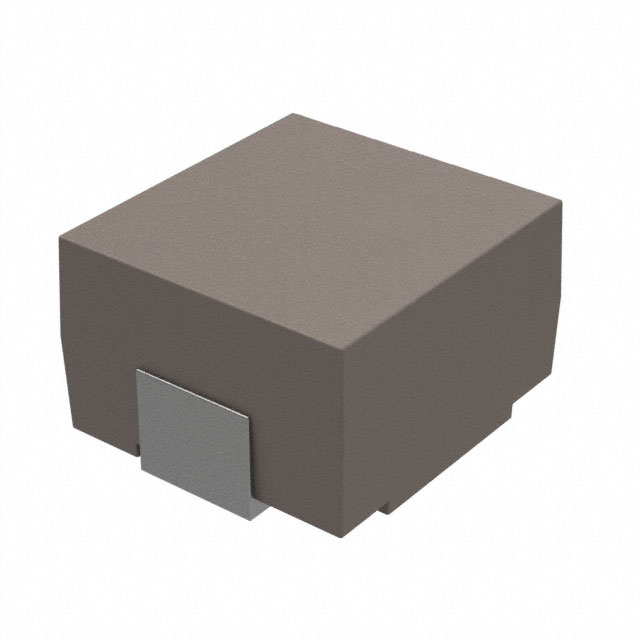

FP1308R1-R32-R

Part Number
FP1308R1-R32-R
Manufacturer PowerStor (Eaton)
Other Part Numbers
283-FP1308R1-R32-RTR-ND
283-FP1308R1-R32-RCT-ND
283-FP1308R1-R32-RDKR-ND
2266-FP1308R1-R32-RTR
-875-FP1308R1-R32-RTR
283-FP1308R1-R32-RDKR
283-FP1308R1-R32-RCT
FP1308R1-R32-R-ND
-875-FP1308R1-R32-RCT
-875-FP1308R1-R32-RTR-ND
283-FP1308R1-R32-RTR
Description FIXED IND 320NH 57A 0.32MOHM SMD
Detailed Description 320 nH Unshielded Drum Core, Wirewound Inductor 57 A 0.32mOhm Nonstandard
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer PowerStor (Eaton)
Series
FLAT-PAC, FP1308R
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±10%
Package / Case Nonstandard
Size / Dimension 0.528" L x 0.500" W (13.40mm x 12.70mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 0.32mOhm
Current - Saturation (Isat) 52A
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.315" (8.00mm)
Inductance 320 nH
Current Rating (Amps) 57 A

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order
