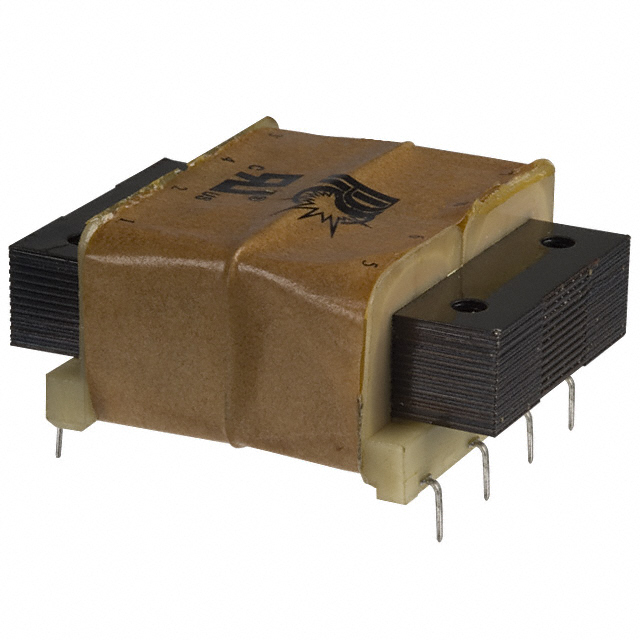

FP30-400

Part Number
FP30-400
Manufacturer Triad Magnetics
Other Part Numbers
237-1005-ND
FP30400
237-1005-NDR
10420
237-1005
Description PWR XFMR LAMINATED 12VA TH
Manufacturer Standard Lead Time 23 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Triad Magnetics
Series
Flat Pack™
Packaging
Box
Part Status Active
Size / Dimension 63.50mm L x 50.80mm W
Mounting Type Through Hole
Type Laminated Core
Weight 0.688 lb (312.07 g)
Termination Style PC Pin
Primary Winding(s) Dual
Secondary Winding(s) Dual
Power - Max 12VA
Voltage - Isolation 2000Vrms
Current - Output (Max) Parallel 800mA, Series 400mA
Voltage - Primary 115V, 230V
Height - Seated (Max) 26.97mm
Voltage - Secondary (Full Load) Parallel 15V, Series 30V
Center Tap No

Documents & Media

RESOURCE TYPE LINK
Datasheets FP30-400
Datasheets RoHS Statement

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.31.4035
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 11

Can ship immediately.
