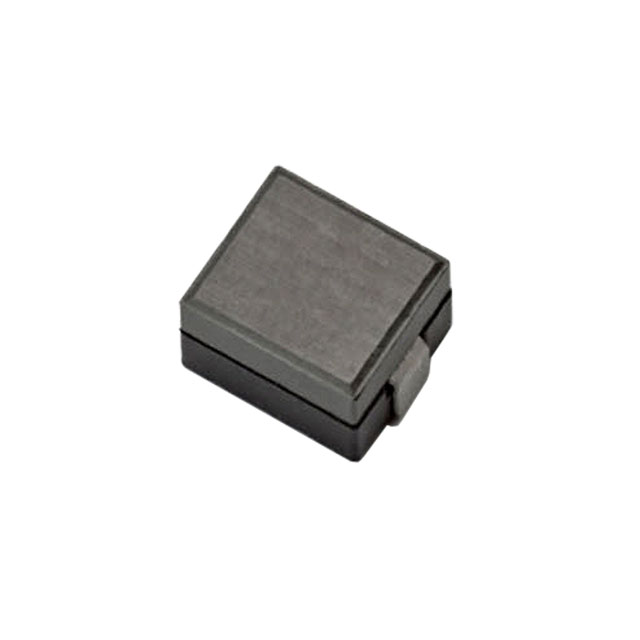

FPV1006-150-R

FPV1006-150-R

Part Number	FPV1006-150-R
Manufacturer	PowerStor (Eaton)
Other Part Numbers	283-4578-2-ND 283-4578-1-ND 283-4578-6-ND 283-4578-2 283-4578-1 283-4578-6
Description	FIXED IND 150NH 25A 0.41MOHM SMD
Detailed Description	150 nH Shielded Drum Core, Wirewound Inductor 25 A 0.41mOhm Max Nonstandard
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		PowerStor (Eaton)
Series		FPV1006
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±10%
Package / Case		Nonstandard
Size / Dimension		0.382" L x 0.331" W (9.70mm x 8.40mm)
Mounting Type		Surface Mount
Shielding		Shielded
Type		Drum Core, Wirewound
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		0.41mOhm Max
Current - Saturation (Isat)		45A
Material - Core		Ferrite
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.252" (6.40mm)
Inductance		150 nH
Current Rating (Amps)		25 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		FPV1006-150-R
Datasheets		Shipping Box and Labels 05/Jan/2018

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 9387

Can ship immediately.
