FQP4N20 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	FQP4N20
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-FQP4N20-FS-ND 2156-FQP4N20-FS FAIFSCFQP4N20
Description	MOSFET N-CH 200V 3.6A TO220-3
Detailed Description	N-Channel 200 V 3.6A (Tc) 45W (Tc) Through Hole TO-220-3

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Fairchild Semiconductor
Series		QFET®
Packaging		Tube
Part Status		Obsolete

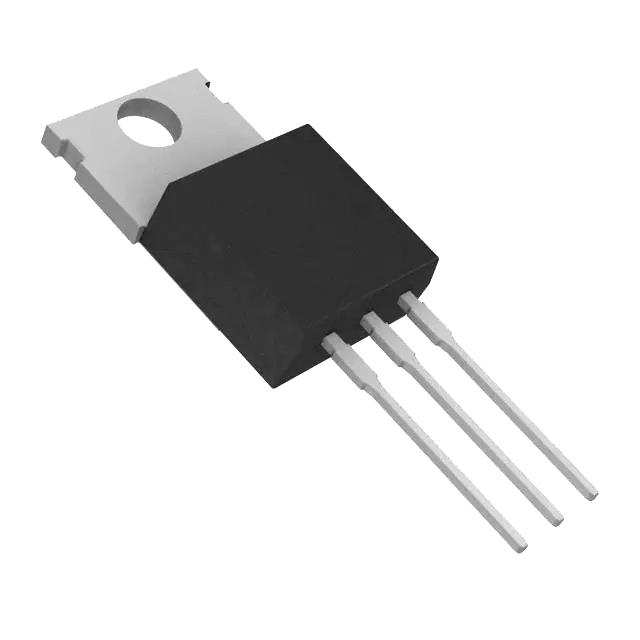

Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		3.6A (Tc)
Rds On (Max) @ Id, Vgs		1.4Ohm @ 1.8A, 10V
Power Dissipation (Max)		45W (Tc)
Vgs(th) (Max) @ Id		5V @ 250µA
Supplier Device Package		TO-220-3
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±30V
Drain to Source Voltage (Vdss)		200 V
Gate Charge (Qg) (Max) @ Vgs		6.5 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		220 pF @ 25 V

RESOURCE TYPE		LINK

This product is no longer manufactured.
