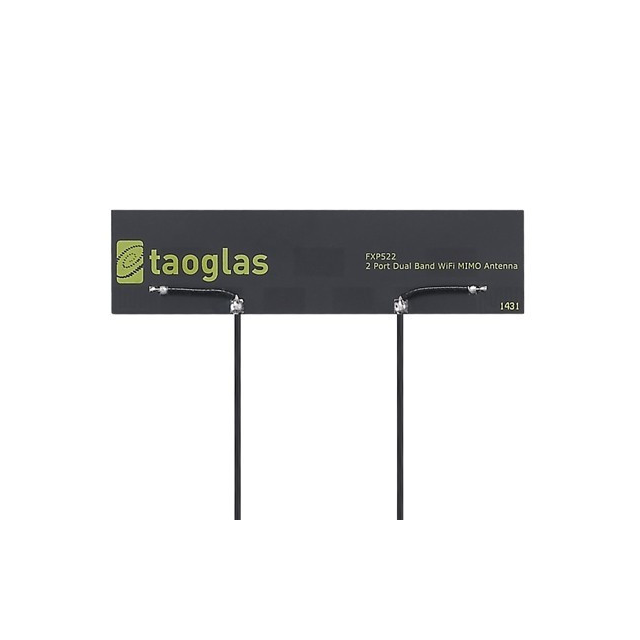

FXP522.A.07.A.001

FXP522.A.07.A.001

Part Number	FXP522.A.07.A.001
Manufacturer	Taoglas
Other Part Numbers	931-1370-ND 931-1370
Description	RF ANT 2.4GHZ/5.8GHZ FLAT 120MM
Detailed Description	2.4GHz, 5.8GHz Wi-Fi Flat Patch RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz 3.78dBi, 4.63dBi U.FL (UMCC), IPEX MHF1 Adhesive
Manufacturer Standard Lead Time	11 weeks

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series		Venti
Packaging		Bag
Part Status		Active
Features		Cable - 100mm
Mounting Type		Adhesive
Frequency Range		2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz
Applications		Wi-Fi
Gain		3.78dBi, 4.63dBi
Termination		U.FL (UMCC), IPEX MHF1
Number of Bands		2
Antenna Type		Flat Patch
Height (Max)		0.006" (0.15mm)
Frequency Group		UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)		2.4GHz, 5.8GHz
RF Family/Standard		WiFi
Power - Max		2 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		FXP522.A.07.A.001
Datasheets		Taoglas Limited RoHS
Datasheets		Label 25/May/2018

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1336

Can ship immediately.
