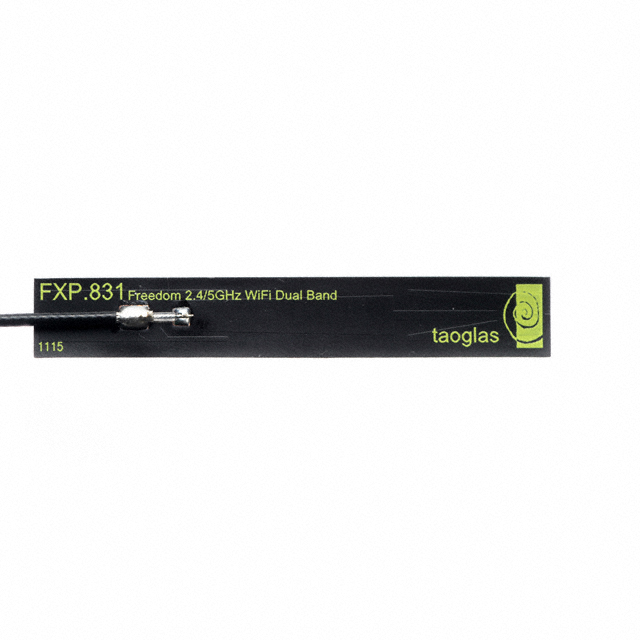

FXP831.09.0100C

FXP831.09.0100C

Part Number	FXP831.09.0100C
Manufacturer	Taoglas
Other Part Numbers	931-1138-ND FXP831090100C 931-1138
Description	RF ANT 2.4GHZ/5.4GHZ FLAT PATCH
Detailed Description	2.4GHz, 5.4GHz Bluetooth, WLAN Flat Patch RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz 3dBi, 5.5dBi MMCX Male Adhesive
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series		Freedom
Packaging		Bag
Part Status		Active
Mounting Type		Adhesive
Frequency Range		2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz
Applications		Bluetooth, WLAN
Gain		3dBi, 5.5dBi
Termination		MMCX Male
Number of Bands		2
VSWR		2.5
Antenna Type		Flat Patch
Height (Max)		0.004" (0.10mm)
Frequency Group		UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)		2.4GHz, 5.4GHz
RF Family/Standard		Bluetooth, WiFi
Power - Max		2 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Taoglas Limited RoHS
Datasheets		Label 25/May/2018

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 127

Can ship immediately.
