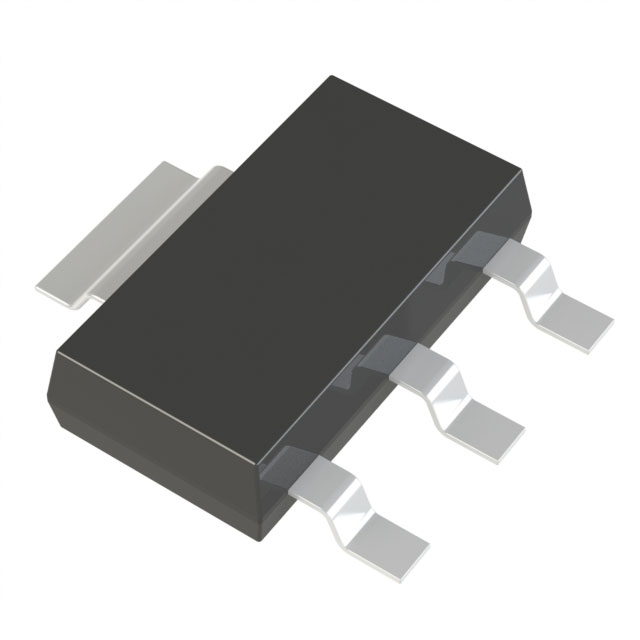

FZT493TA

FZT493TA

Part Number	FZT493TA
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	FZT493TR-ND FZT493CT-ND FZT493DKR-ND FZT493 FZT493TR-NDR FZT493DKRINACTIVE-ND FZT493CT-NDR FZT493DKR-ND FZT493DKRINACTIVE FZT493TR FZT493CT FZT493DKR
Description	TRANS NPN 100V 1A SOT223-3
Detailed Description	Bipolar (BJT) Transistor NPN 100 V 1 A 150MHz 2 W Surface Mount SOT-223-3
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		TO-261-4, TO-261AA
Mounting Type		Surface Mount
Transistor Type		NPN
Operating Temperature		-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic		600mV @ 100mA, 1A
Current - Collector Cutoff (Max)		100nA
DC Current Gain (hFE) (Min) @ Ic, Vce		100 @ 250mA, 10V
Frequency - Transition		150MHz
Supplier Device Package		SOT-223-3
Current - Collector (Ic) (Max)		1 A
Voltage - Collector Emitter Breakdown (Max)		100 V
Power - Max		2 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		FZT493TA
Datasheets		Diodes Environmental Compliance Cert
Datasheets		Date Code Mark Update 13/Jan/2015
Datasheets		Mult Devices Rev 21/Apr/2017
Datasheets		Multiple Device Changes 29/Apr/2013
Datasheets		SOT-223 Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0075
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 23105

Can ship immediately.
