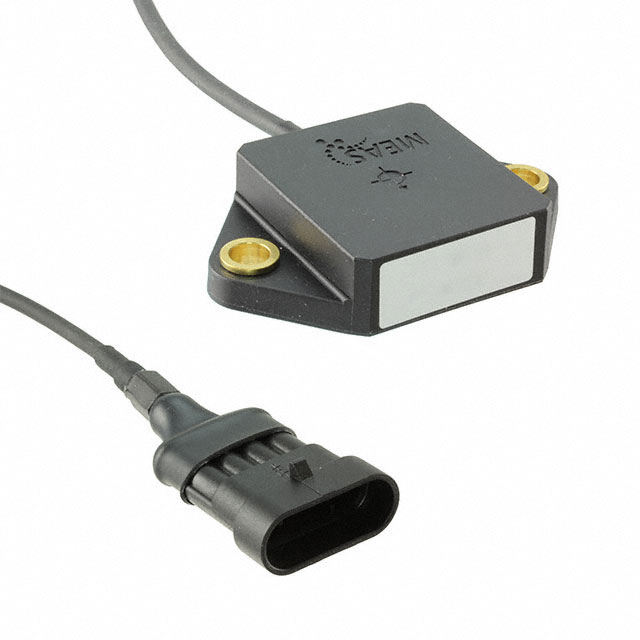

G-NSDOG2-002

G-NSDOG2-002

Part Number	G-NSDOG2-002
Manufacturer	TE Connectivity Measurement Specialties
Other Part Numbers	223-1573-ND 223-1573
Description	SENSOR INCLINOMETER 45DEG MODULE
Detailed Description	Sensor Inclinometer ±45° X, Y Axis 100Hz Bandwidth Module
Manufacturer Standard Lead Time	23 weeks

Product Attributes

Category		Sensors, Transducers Motion Sensors Inclinometers
Manufacturer		TE Connectivity Measurement Specialties
Series		MEMS
Packaging		Bulk
Part Status		Active
Package / Case		Module
Output Type		Voltage
Interface		Analog
Axis		X, Y
Operating Temperature		-40°C ~ 85°C
Bandwidth		100Hz
Measuring Range		±45°
Voltage Rating		8 V ~ 30 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		G-NSDOG2-002
Datasheets		G-NSDOG2-002 Product Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		9031.80.8085
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant
