Part Number |
GSLW120203
|
---|---|
Manufacturer | Storm Interface |
Other Part Numbers |
MGR1572-ND
GSLW120201
MGR1572
GSLW120202
MGR1572-NDR
|
Description | SWITCH KEYPAD 12KEY 0.05A 24V |

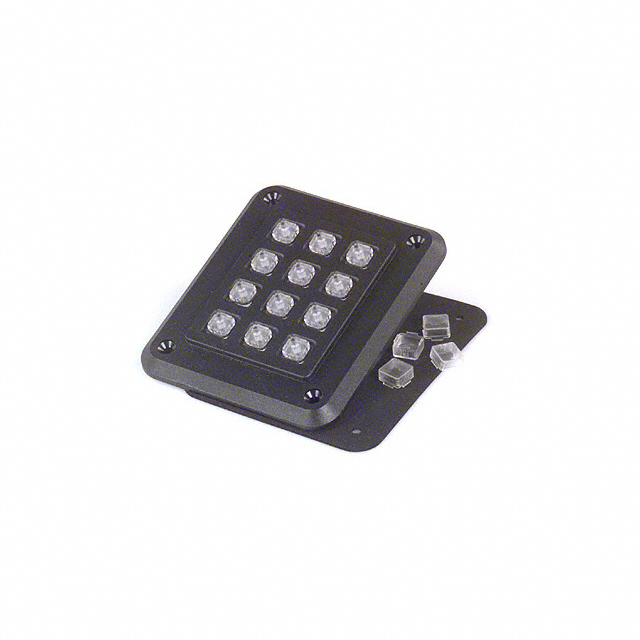

Detailed Description | Keypad Switch 12 Transparent Key Cap Keys Conductive Rubber Contacts Matrix Output Illuminated - White 0.05A @ 24VDC |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Storm Interface | |
Series |
GFX Illuminator
|
|
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Output Type | Matrix | |
Number of Keys | 12 | |
Mounting Type | Panel Mount, Front or Rear | |
Switch Type | Conductive Rubber | |
Operating Temperature | -10°C ~ 75°C | |
Termination Style | Pin Header | |
Legend | Customizable (Sold Separate) | |
Illumination Voltage (Nominal) | 3.5 VDC | |
Illumination | Illuminated - White | |
Contact Rating @ Voltage | 0.05A @ 24VDC | |
Ingress Protection | IP54 - Dust Protected, Water Resistant | |
Panel Cutout Dimensions | Rectangular - 83.00mm x 64.00mm | |
Legend Type | Interchangeable | |
Key Type | Transparent Key Cap | |
Matrix (Columns x Rows) | 3 x 4 | |
Key Color | Transparent |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | GSLW120203 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8537.10.9170 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
