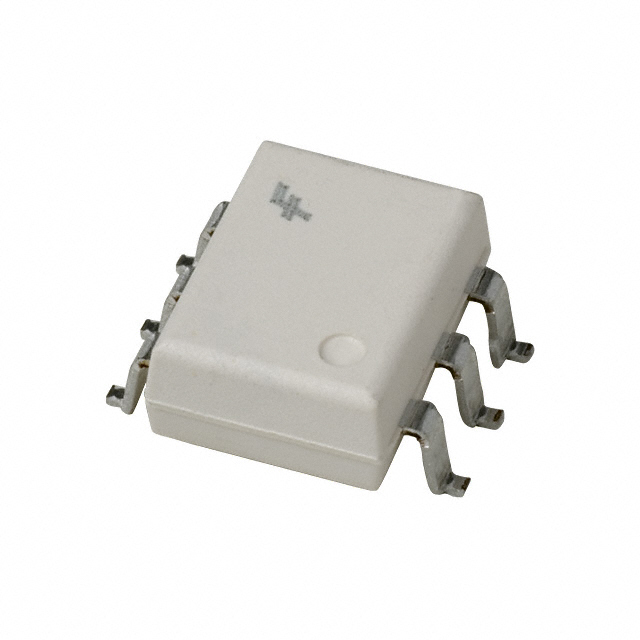

H11AA4SVM

H11AA4SVM

Part Number	H11AA4SVM
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-H11AA4SVM-ND 2156-H11AA4SVM FAIFSCH11AA4SVM
Description	AC INPUT-TRANSISTOR OUTPUT OPTOC
Detailed Description	Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD

Product Attributes

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Fairchild Semiconductor
Series
Packaging		Bulk
Part Status		Active
Package / Case		6-SMD, Gull Wing
Output Type		Transistor with Base
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.17V
Input Type		AC, DC
Current - Output / Channel		50mA
Voltage - Isolation		4170Vrms
Current Transfer Ratio (Min)		100% @ 10mA
Vce Saturation (Max)		400mV
Supplier Device Package		6-SMD
Voltage - Output (Max)		30V
Number of Channels		1
Current - DC Forward (If) (Max)		60 mA

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
