H130SA-8.000-8-50150-EXT2-TR

H130SA-8.000-8-50150-EXT2-TR

Part Number	H130SA-8.000-8-50150-EXT2-TR
Manufacturer	Raltron
Other Part Numbers	2151-H130SA-8.000-8-50150-EXT2-TR-ND 2151-H130SA-8.000-8-50150-EXT2-TRCT-ND 2151-H130SA-8.000-8-50150-EXT2-TRDKR-ND 2151-H130SA-8.000-8-50150-EXT2-TR -2344-H130SA-8.000-8-50150-EXT2-TRCT 2151-H130SA-8.000-8-50150-EXT2-TRCT 2151-H130SA-8.000-8-50150-EXT2-TRDKR -2344-H130SA-8.000-8-50150-EXT2-CT-ND -2344-H130SA-8.000-8-50150-EXT2-TR -2344-H130SA-8.000-8-50150-EXT2-TR-ND

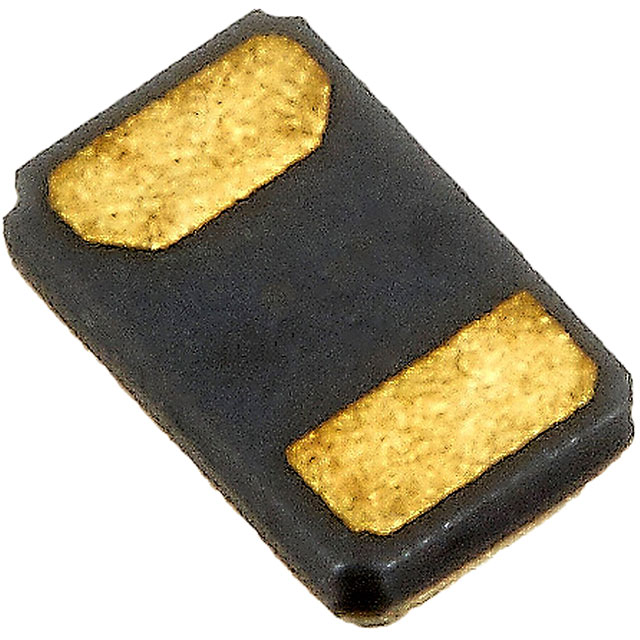

Description	CRYSTAL 8.0000MHZ 8PF SMD
Detailed Description	8 MHz ±50ppm Crystal 8pF 100 Ohms 2-SMD, No Lead
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Raltron
Series		H130SA
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		2-SMD, No Lead
Load Capacitance		8pF
Size / Dimension		0.197" L x 0.126" W (5.00mm x 3.20mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 150°C
Frequency Stability		±150ppm
Frequency Tolerance		±50ppm
Operating Mode		Fundamental
Ratings		AEC-Q200
Height - Seated (Max)		0.035" (0.90mm)
ESR (Equivalent Series Resistance)		100 Ohms
Frequency		8 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		H130SA-8.000-8-50150-EXT2-TR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Available To Order

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$1.05	$1.05
Total Amount: $1.05

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
1,000	$0.61	$610.00
3,000	$0.59	$1,770.00
5,000	$0.57	$2,850.00
10,000	$0.55	$5,500.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$1.05	$1.05
10	$0.93	$9.30
50	$0.87	$43.50
100	$0.77	$77.00
500	$0.73	$365.00
