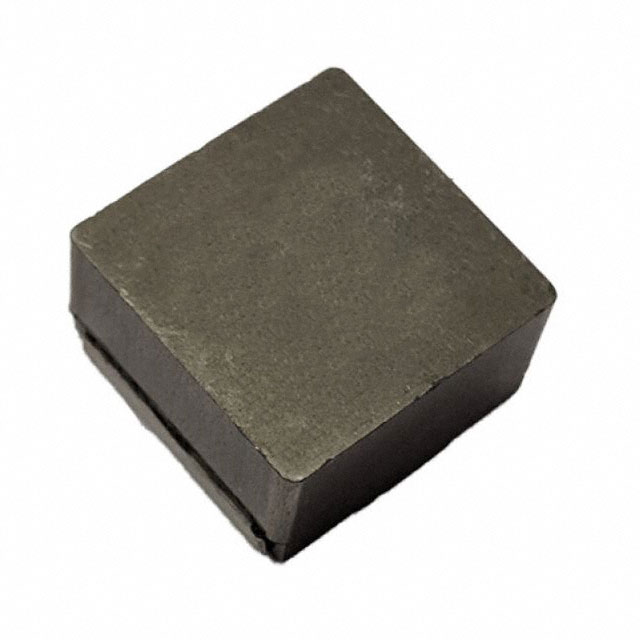

HCM1A2213V2-4R7-R _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	HCM1A2213V2-4R7-R
Manufacturer	PowerStor (Eaton)
Other Part Numbers	283-HCM1A2213V2-4R7-RTR-ND 283-HCM1A2213V2-4R7-RCT-ND 283-HCM1A2213V2-4R7-RCT 283-HCM1A2213V2-4R7-RTR -875-HCM1A2213V2-4R7-RTR -875-HCM1A2213V2-4R7-RTR-ND -875-HCM1A2213V2-4R7-RCT
Description	FIXED IND 4.7UH 33A 1.85MOHM SMD
Detailed Description	4.7 µH Shielded Inductor 33 A 1.85mOhm Max Nonstandard
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		PowerStor (Eaton)
Series		HCM1AV2
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.885" L x 0.866" W (22.48mm x 22.00mm)
Mounting Type		Surface Mount
Shielding		Shielded
Operating Temperature		-55°C ~ 155°C
DC Resistance (DCR)		1.85mOhm Max
Frequency - Self Resonant		10MHz
Ratings		AEC-Q200
Current - Saturation (Isat)		37A
Material - Core		Iron Powder
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.512" (13.00mm)
Inductance		4.7 µH
Current Rating (Amps)		33 A

RESOURCE TYPE		LINK
Datasheets		HCM1A2213V2-4R7-R

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
