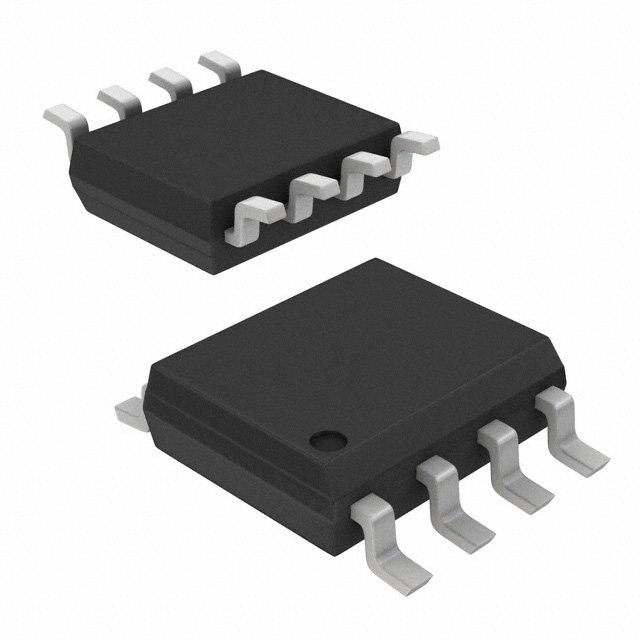

HCPL-0661-500E _ Logic Output Optoisolators_Optoisolators_Isolators

Part Number	HCPL-0661-500E
Manufacturer	Broadcom
Other Part Numbers	516-2477-2-ND 516-2477-1-ND 516-2477-6-ND 516-2477-6 516-2477-2 516-2477-1 HCPL0661500E HCPL-0661-500E-ND
Description	OPTOISO 3.75KV 2CH OPEN COLL 8SO
Detailed Description	Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 3750Vrms 2 Channel 15kV/µs CMTI 8-SO Tall
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Logic Output Optoisolators
Manufacturer		Broadcom
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		8-SOIC (0.154", 3.90mm Width)
Output Type		Open Collector, Schottky Clamped
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		4.5V ~ 5.5V
Voltage - Forward (Vf) (Typ)		1.5V
Data Rate		10MBd
Input Type		DC
Voltage - Isolation		3750Vrms
Current - DC Forward (If) (Max)		15mA
Inputs - Side 1/Side 2		2/0
Supplier Device Package		8-SO Tall
Rise / Fall Time (Typ)		24ns, 10ns
Common Mode Transient Immunity (Min)		15kV/µs
Propagation Delay tpLH / tpHL (Max)		100ns, 100ns
Number of Channels		2
Current - Output / Channel		50 mA

RESOURCE TYPE		LINK
Datasheets		HCPL-0661-500E
Datasheets		Mult Device Design Changes 10/Nov/2015
Datasheets		Molding Chg 08/Feb/2016
Datasheets		Marking/Labeling Revision B 14/Jan/2014
Datasheets		Multiple Devices Marking/Labeling 07/Aug/2013

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
