HCPL-7721-000E _ Logic Output Optoisolators_Optoisolators_Isolators

Part Number	HCPL-7721-000E
Manufacturer	Broadcom
Other Part Numbers	516-1550-5-ND HCPL7721000E 516-1550-5

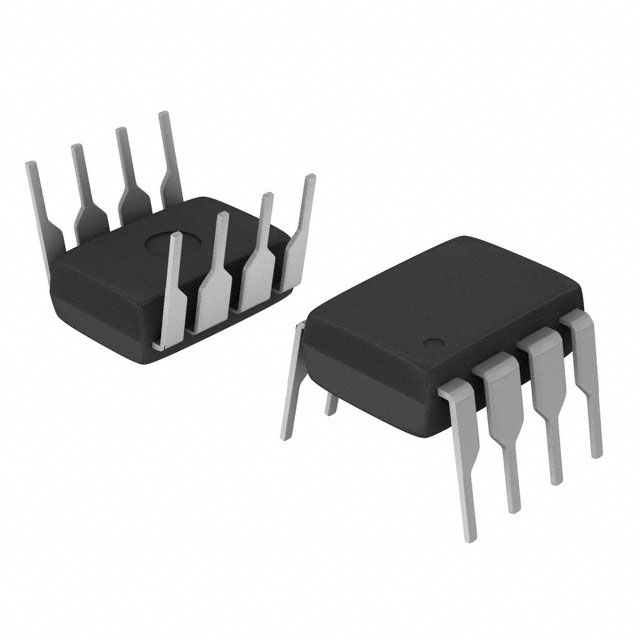

Description	OPTOISO 3.75KV PUSH PULL 8DIP
Detailed Description	Logic Output Optoisolator 25MBd Push-Pull, Totem Pole 3750Vrms 1 Channel 10kV/µs CMTI 8-DIP
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Logic Output Optoisolators
Manufacturer		Broadcom
Series
Packaging		Tube
Part Status		Active
Package / Case		8-DIP (0.300", 7.62mm)
Output Type		Push-Pull, Totem Pole
Mounting Type		Through Hole
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		4.5V ~ 5.5V
Data Rate		25MBd
Input Type		Logic
Voltage - Isolation		3750Vrms
Inputs - Side 1/Side 2		1/0
Supplier Device Package		8-DIP
Rise / Fall Time (Typ)		9ns, 8ns
Common Mode Transient Immunity (Min)		10kV/µs
Propagation Delay tpLH / tpHL (Max)		40ns, 40ns
Number of Channels		1
Current - Output / Channel		10 mA

RESOURCE TYPE		LINK
Datasheets		Molding Chg 08/Feb/2016
Datasheets		Mult Device Design Changes 10/Nov/2015
Datasheets		Multiple Devices Marking/Labeling 07/Aug/2013
Datasheets		Marking/Labeling Revision B 14/Jan/2014
Datasheets		CMOS 8-Pin Circuit

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
