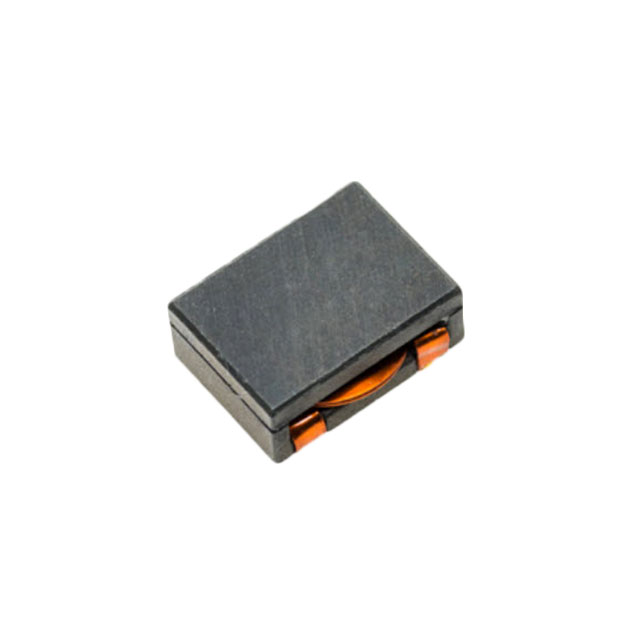

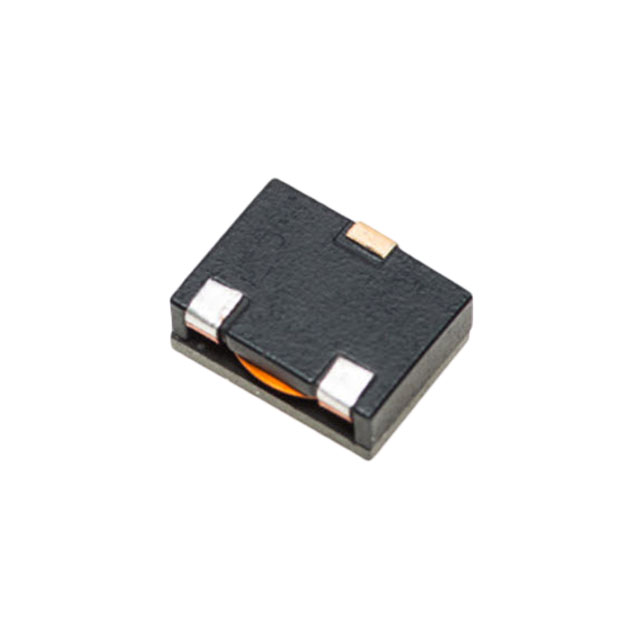

HCV1206-3R0-R

Part Number
HCV1206-3R0-R
Manufacturer PowerStor (Eaton)
Other Part Numbers
283-4589-2-ND
283-4589-1-ND
283-4589-6-ND
283-4589-2
283-4589-1
2266-HCV1206-3R0-R
283-4589-6
Description FIXED IND 3UH 11A 7.4 MOHM SMD
Detailed Description 3 µH Unshielded Drum Core, Wirewound Inductor 11 A 7.4mOhm Nonstandard
Manufacturer Standard Lead Time 13 weeks

Product Attributes

Category
Manufacturer PowerStor (Eaton)
Series
HCV1206
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±10%
Package / Case Nonstandard
Size / Dimension 0.480" L x 0.386" W (12.20mm x 9.80mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 7.4mOhm
Current - Saturation (Isat) 13A
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.201" (5.10mm)
Inductance 3 µH
Current Rating (Amps) 11 A

Documents & Media

RESOURCE TYPE LINK
Datasheets HCV1206-3R0-R
Datasheets Shipping Box and Labels 05/Jan/2018

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

In Stock: 229

Can ship immediately.
