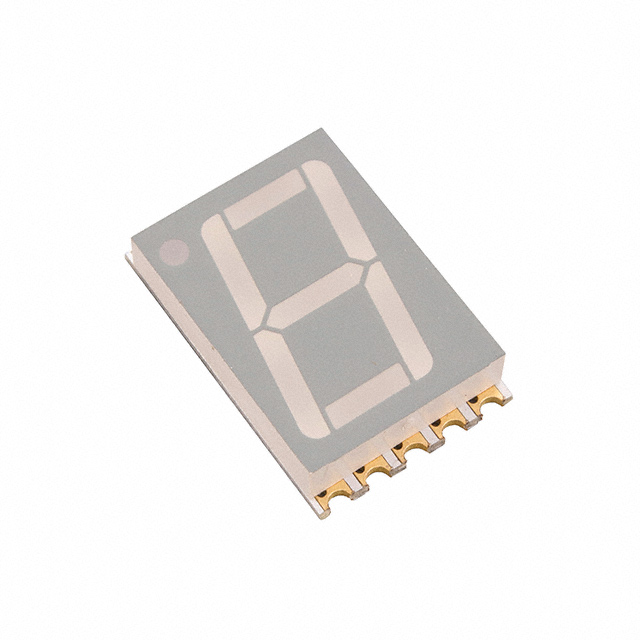

HDSM-531C

HDSM-531C

Part Number	HDSM-531C
Manufacturer	Broadcom
Other Part Numbers	516-3924-2-ND 516-3924-1-ND 516-3924-6-ND 516-3924-6 516-3924-2 516-3924-1 HDSM-531C-ND
Description	DISPLAY 7SEG 0.56" SGL RED 10SMD
Detailed Description	Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.669" H x 0.492" W x 0.148" D (17.00mm x 12.50mm x 3.75mm) 10-SMD, No Lead
Manufacturer Standard Lead Time	28 weeks
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Character and Numeric
Manufacturer		Broadcom
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		10-SMD, No Lead
Color		Red
Display Type		7-Segment
Size / Dimension		0.669" H x 0.492" W x 0.148" D (17.00mm x 12.50mm x 3.75mm)
Number of Characters		1
Millicandela Rating		16mcd
Common Pin		Common Anode
Digit/Alpha Size		0.56" (14.22mm)
Voltage - Forward (Vf) (Typ)		2V
Current - Test		20mA
Wavelength - Peak		632nm
Power Dissipation (Max)		65mW

Documents & Media

RESOURCE TYPE		LINK
Datasheets		HDSM-531C
Datasheets		New Dice 26/May/2021
Datasheets		Mult Dev Manufacturing Site 19/Feb/2024

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
