HDSP-H108

HDSP-H108

Part Number	HDSP-H108
Manufacturer	Broadcom
Other Part Numbers	516-2748-ND HDSP-H108-ND 516-2748 HDSPH108
Description	DISP 7SEG 0.56" OV/FL RED 10DIP

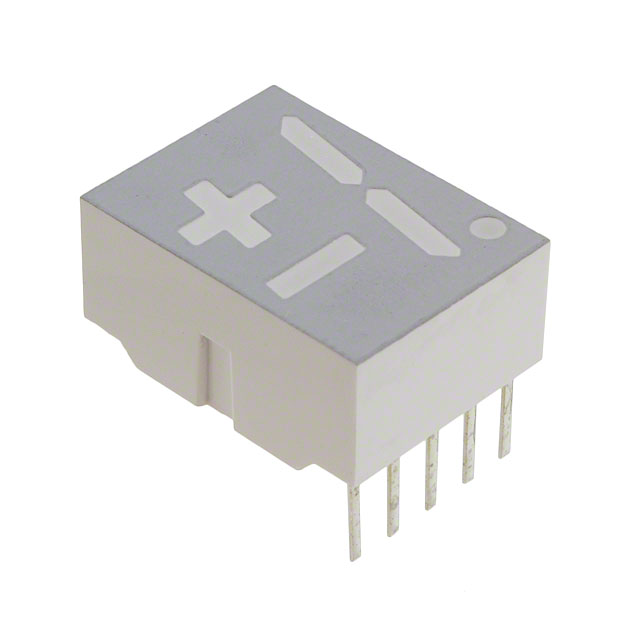

Detailed Description	Display Modules - LED Character and Numeric Red 7-Segment +/-1 (overflow) Character Common Cathode 1.7V 5mA 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) 10-DIP (0.600", 15.24mm), 9 Leads
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Character and Numeric
Manufacturer		Broadcom
Series
Packaging		Bulk
Part Status		Obsolete
Package / Case		10-DIP (0.600", 15.24mm), 9 Leads
Color		Red
Display Type		7-Segment
Size / Dimension		0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm)
Number of Characters		+/-1 (overflow)
Millicandela Rating		4.2mcd
Common Pin		Common Cathode
Digit/Alpha Size		0.56" (14.22mm)
Voltage - Forward (Vf) (Typ)		1.7V
Current - Test		5mA
Wavelength - Peak		645nm
Power Dissipation (Max)		37mW

Documents & Media

RESOURCE TYPE		LINK
Datasheets		HDSP-H108
Datasheets		EOL 1-31-23
Datasheets		Alternate Scrambler/Painter 12/Nov/2014
Datasheets		HDSP Die Chgs 1/Dec/2021

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Obsolete

This product is no longer manufactured.
