HF1008-472K

HF1008-472K

Part Number
HF1008-472K
Manufacturer API Delevan
Other Part Numbers
HF1008-472K-ND
1008HF-472K-ND
HF1008-472K TR 500
1008HF-472K
Description FIXED IND 4.7UH 273MA 2 OHM SMD

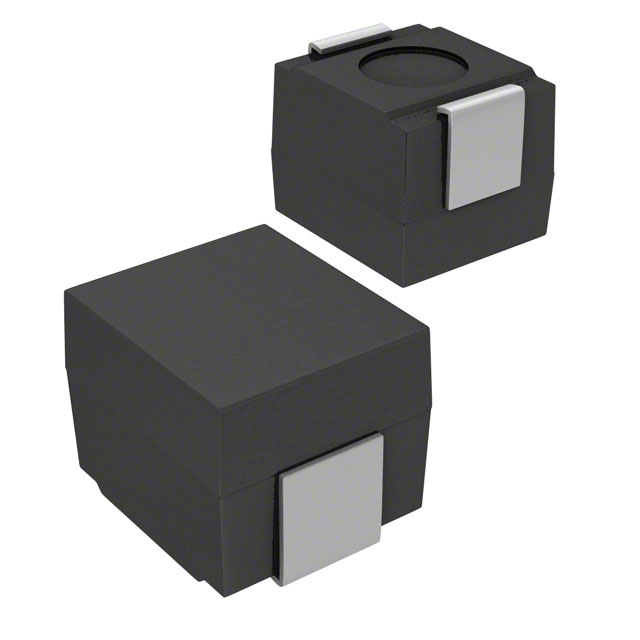

Detailed Description 4.7 µH Unshielded Inductor 273 mA 2Ohm Max Nonstandard
Manufacturer Standard Lead Time 7 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer API Delevan
Series
HF1008
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±10%
Package / Case Nonstandard
Size / Dimension 0.105" L x 0.095" W (2.66mm x 2.41mm)
Mounting Type Surface Mount
Shielding Unshielded
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 2Ohm Max
Q @ Freq 30 @ 7.9MHz
Frequency - Self Resonant 40MHz
Material - Core Ferrite
Inductance Frequency - Test 7.9 MHz
Height - Seated (Max) 0.095" (2.41mm)
Inductance 4.7 µH
Current Rating (Amps) 273 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets HF1008-472K

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

Available To Order

Tape & Reel (TR)

QUANTITY UNIT PRICE EXT PRICE
500 $2.50 $1,250.00
