HIP2100EIBZ

Part Number
HIP2100EIBZ
Manufacturer Intersil (Renesas Electronics Corporation)
Other Part Numbers
HIP2100EIBZ-ND
-HIP2100EIBZ
Description IC GATE DRVR HALF-BRIDGE 8SOIC
Detailed Description Half-Bridge Gate Driver IC Non-Inverting 8-SOIC-EP
Manufacturer Standard Lead Time 18 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Intersil (Renesas Electronics Corporation)
Series
Packaging
Tube
Part Status Active

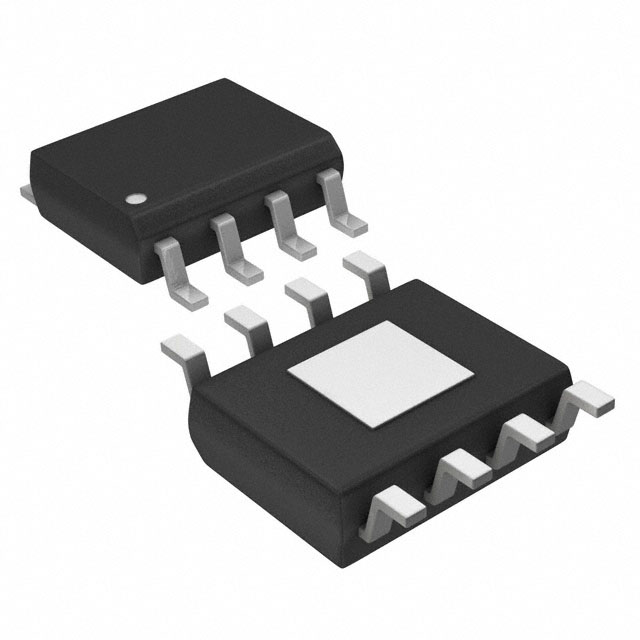

Package / Case 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Mounting Type Surface Mount
Operating Temperature -55°C ~ 150°C (TJ)
Voltage - Supply 9V ~ 14V
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 114 V
Supplier Device Package 8-SOIC-EP
Rise / Fall Time (Typ) 10ns, 10ns
Channel Type Independent
Driven Configuration Half-Bridge
Number of Drivers 2
Gate Type N-Channel MOSFET
Logic Voltage - VIL, VIH 4V, 7V
Current - Peak Output (Source, Sink) 2A, 2A
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets HIP2100EIBZ
Datasheets Label Change-All Devices 01/Dec/2022

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1482

Can ship immediately.
