HLMP-DB25-B0002

Part Number
HLMP-DB25-B0002
Manufacturer Broadcom
Other Part Numbers
HLMP-DB25-B0002-ND

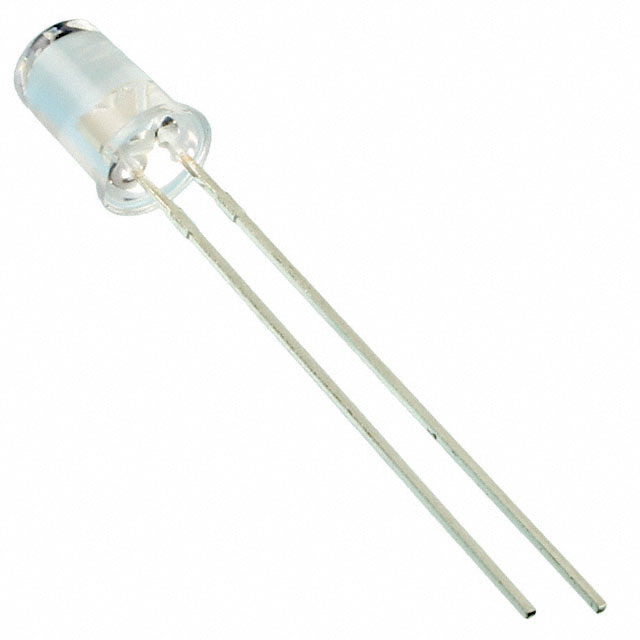

Description LED BLUE CLEAR T-1 3/4 T/H
Detailed Description Blue 470nm LED Indication - Discrete 3.2V Radial
Datasheet Datasheet

Product Attributes

Category
Manufacturer Broadcom
Series
Packaging
Tape & Reel (TR)
Part Status Obsolete
Package / Case Radial
Color Blue
Mounting Type Through Hole
Millicandela Rating 40mcd
Configuration Standard
Voltage - Forward (Vf) (Typ) 3.2V
Lens Color Colorless
Current - Test 20mA
Viewing Angle 25°
Height (Max) 9.19mm
Wavelength - Peak 464nm
Wavelength - Dominant 470nm
Supplier Device Package T-1 3/4
Lens Transparency Clear
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4

Documents & Media

RESOURCE TYPE LINK
Datasheets New Die Source 25/Sept/2009

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
