HLMP-EL16-VY000

Part Number
HLMP-EL16-VY000
Manufacturer Broadcom
Other Part Numbers
516-1368-ND
516-1368
516-1368-NDR

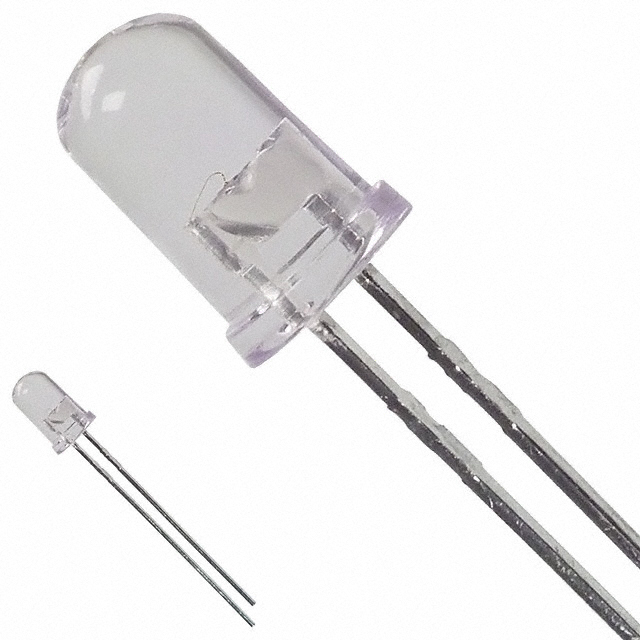

Description LED AMBER CLEAR T-1 3/4 T/H
Detailed Description Amber 592nm LED Indication - Discrete 2.3V Radial
Datasheet Datasheet

Product Attributes

Category
Manufacturer Broadcom
Series
Packaging
Bulk
Part Status Obsolete
Package / Case Radial
Color Amber
Mounting Type Through Hole
Millicandela Rating 8100mcd
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.3V
Lens Color Colorless
Current - Test 20mA
Viewing Angle 15°
Height (Max) 8.91mm
Wavelength - Peak 594nm
Wavelength - Dominant 592nm
Supplier Device Package T-1 3/4
Lens Transparency Clear
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4

Documents & Media

RESOURCE TYPE LINK
Datasheets HLMP-EL16-VY000
Datasheets HLMP-EL,EH,EDxx

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
