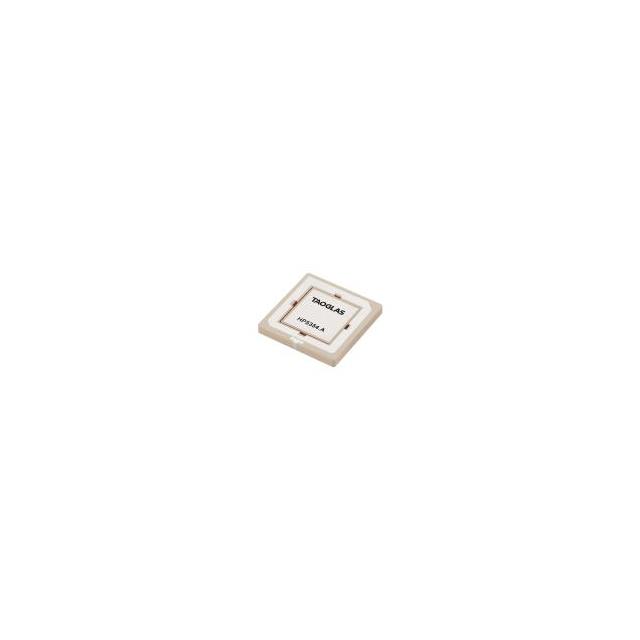

HP5354.A

HP5354.A

Part Number	HP5354.A
Manufacturer	Taoglas
Other Part Numbers	931-HP5354.A-ND 931-HP5354.A
Description	HIGH PRECISION GNSS L1/L5 PATCH
Detailed Description	1.176GHz, 1.561GHz, 1.575GHz, 1.589GHz BeiDou, Galileo, GLONASS, GNSS, GPS Ceramic Patch RF Antenna 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.569GHz ~ 1.61GHz 2.07dBi, -0.35dBi, 2.61dBi, 2.61dBi Solder
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series
Packaging		Bulk
Part Status		Active
Mounting Type		Solder
Frequency Range		1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.569GHz ~ 1.61GHz
Applications		BeiDou, Galileo, GLONASS, GNSS, GPS
Gain		2.07dBi, -0.35dBi, 2.61dBi, 2.61dBi
Number of Bands		4
Antenna Type		Ceramic Patch
Height (Max)		0.157" (4.00mm)
Frequency Group		UHF (1GHz ~ 2GHz)
Frequency (Center/Band)		1.176GHz, 1.561GHz, 1.575GHz, 1.589GHz
RF Family/Standard		Navigation

Documents & Media

RESOURCE TYPE		LINK
Datasheets		HP5354.A

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		7A994
HTSUS		8529.10.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 185

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Bulk	1	$14.90	$14.90
Total Amount: $14.90

Bulk

QUANTITY	UNIT PRICE	EXT PRICE
1	$14.90	$14.90
100	$11.61	$1,161.00
500	$10.30	$5,150.00
