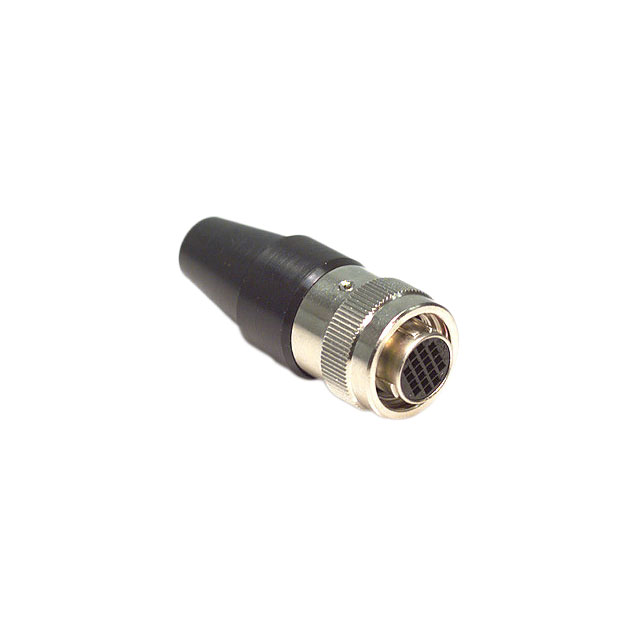

Part Number | HR22-12TPD-20SC(73) |
---|---|
Manufacturer | Hirose Electric Co., Ltd. |
Other Part Numbers | HR1174-ND HR1174 *HR22-12TPD-20SC(73) HR2212TPD20SC73 122-0010-0-73 |
Description | CONN PLG HSG FMALE 20POS INLINE |
Detailed Description | 20 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut, Strain Relief |
Manufacturer Standard Lead Time | 16 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Hirose Electric Co., Ltd. | |
Series | HR22 | |
Packaging | Bulk | |
Part Status | Active | |
Features | Backshell, Cable Clamp, Coupling Nut, Strain Relief | |
Connector Type | Plug Housing | |
Mounting Type | Free Hanging (In-Line) | |
Shielding | Unshielded | |
Number of Positions | 20 | |
Type | For Female Sockets | |
Orientation | Keyed | |
Shell Size - Insert | 12 | |
Operating Temperature | -25°C ~ 85°C | |
Contact Type | Crimp | |
Fastening Type | Threaded | |
Material Flammability Rating | UL94 V-0 | |
Note | Contacts Not Included | |
Housing Color | Silver | |
Contact Shape | Circular | |
Shell Material | Zinc Alloy | |
Shell Finish | Nickel | |
Insert Material | Polybutylene Terephthalate (PBT) |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | HR22-12TPD-20SC(73) | |
Datasheets | Mult devs Material manufacturer chg 23/AUG/2018 | |
Datasheets | HR22 Plug |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8538.90.8180 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Affected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $23.73 | $23.73 |
10 | $20.78 | $207.80 |
100 | $18.60 | $1,860.00 |
