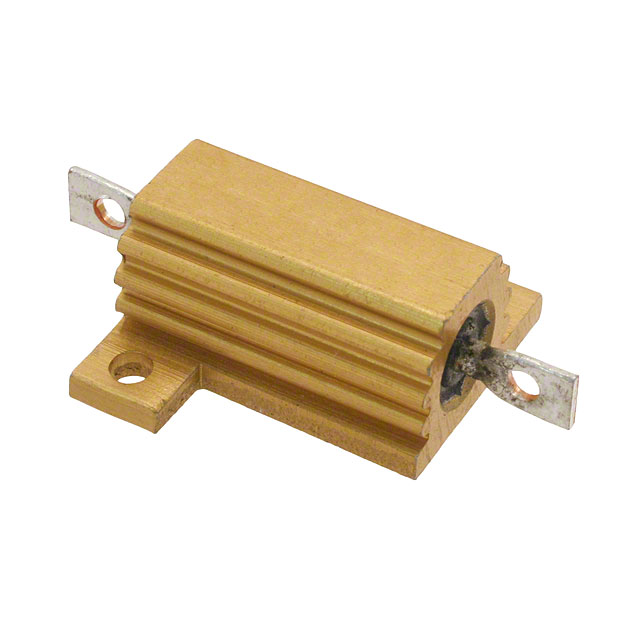

Part Number | HSA102R2J |
---|---|
Manufacturer | TE Connectivity Passive Product |
Other Part Numbers | A102120-ND 2-1625966-4-ND A102120 2266-HSA102R2J 216259664 2-1625966-4 |
Description | RES CHAS MNT 2.2 OHM 5% 16W |
Detailed Description | 2.2 Ohms ±5% 16W Wirewound Chassis Mount Resistor |
Manufacturer Standard Lead Time | 20 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | TE Connectivity Passive Product | |
Series | HS, CGS | |
Packaging | Bulk | |
Part Status | Active | |
Power (Watts) | 16W | |
Tolerance | ±5% | |
Lead Style | Solder Lugs | |
Package / Case | Axial, Box | |
Temperature Coefficient | ±50ppm/°C | |
Size / Dimension | 0.827" L x 0.827" W (21.00mm x 21.00mm) | |
Composition | Wirewound | |
Operating Temperature | -55°C ~ 200°C | |
Mounting Feature | Flanges | |
Coating, Housing Type | Aluminum | |
Height - Seated (Max) | 0.433" (11.00mm) | |
Resistance | 2.2 Ohms |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | HSA102R2J | |
Datasheets | 2-1625966-4 Statement of Compliance | |
Datasheets | 2-1625966-4.pdf | |
Datasheets | 1625966 Drawing |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8533.21.0080 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $2.43 | $2.43 |
10 | $2.06 | $20.60 |
25 | $2.04 | $51.00 |
50 | $1.87 | $93.50 |
200 | $1.53 | $306.00 |
