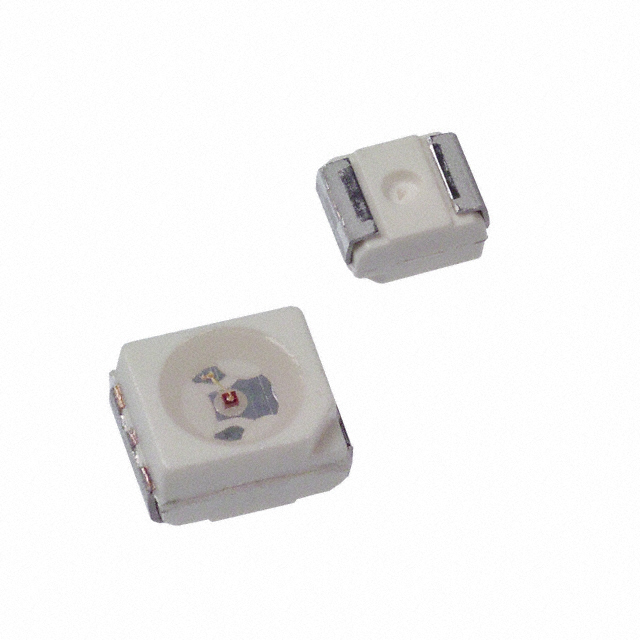

HSMC-A100-P30J1

Part Number
HSMC-A100-P30J1
Manufacturer Broadcom
Other Part Numbers
HSMC-A100-P30J1-ND
Description LED RED CLEAR 2PLCC SMD
Detailed Description Red 626nm LED Indication - Discrete 1.9V 2-PLCC
Datasheet Datasheet

Product Attributes

Category
Manufacturer Broadcom
Series
Packaging
Tape & Reel (TR)
Part Status Obsolete
Package / Case 2-PLCC
Color Red
Size / Dimension 3.20mm L x 2.80mm W
Mounting Type Surface Mount
Millicandela Rating 67.5mcd
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.9V
Lens Color Colorless
Current - Test 20mA
Viewing Angle 120°
Height (Max) 2.10mm
Wavelength - Peak 635nm
Wavelength - Dominant 626nm
Supplier Device Package 2-PLCC
Lens Transparency Clear
Lens Style Round with Flat Top
Lens Size 2.20mm Dia

Documents & Media

RESOURCE TYPE LINK
Datasheets HSMC-A100-P30J1

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
