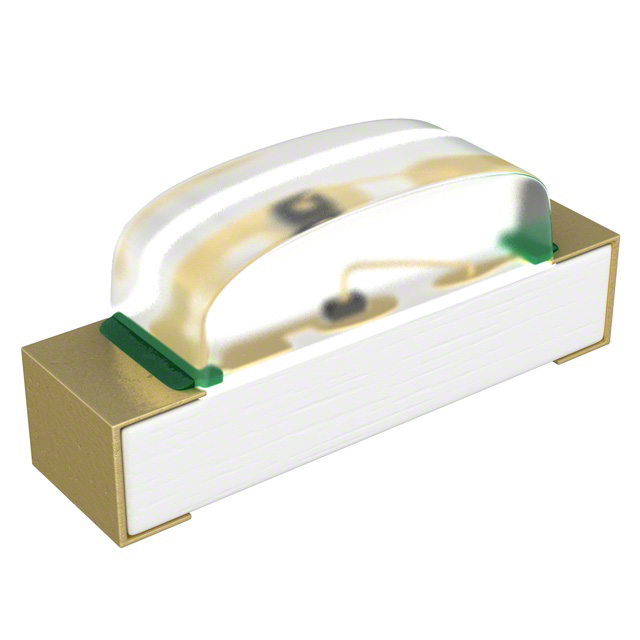

HSMW-C120 _ LED Indication - Discrete_Optoelectronics

Part Number	HSMW-C120
Manufacturer	Broadcom
Other Part Numbers	516-3550-2-ND 516-3550-1-ND 516-3550-6-ND 516-3550-1 516-3550-2 516-3550-6 HSMW-C120-ND
Description	LED COOL WHITE DIFF CHIP SMD R/A
Detailed Description	White LED Indication - Discrete 3.6V 2-SMD, No Lead
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Category		Optoelectronics LED Indication - Discrete
Manufacturer		Broadcom
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		2-SMD, No Lead
Color		White
Size / Dimension		1.60mm L x 1.00mm W
Mounting Type		Surface Mount, Right Angle
Millicandela Rating		160mcd
Configuration		Standard
Voltage - Forward (Vf) (Typ)		3.6V
Lens Color		White
Current - Test		20mA
Viewing Angle		155°
Height (Max)		0.70mm
Supplier Device Package		Chip LED
Lens Transparency		Diffused
Lens Style		Rectangle with Domed Top
Lens Size		1.20mm x 0.60mm

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		2A (4 Weeks)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
