HSP9520CS

Part Number
HSP9520CS
Manufacturer Harris Corporation
Other Part Numbers
2156-HSP9520CS-ND
HARHARHSP9520CS
2156-HSP9520CS
Description MULTILEVEL PIPELINE REGISTER
Detailed Description Shift Register, Pipeline 1 Element 8 Bit 24-SOIC

Product Attributes

Category
Manufacturer Harris Corporation
Series
Packaging
Bulk
Part Status Active

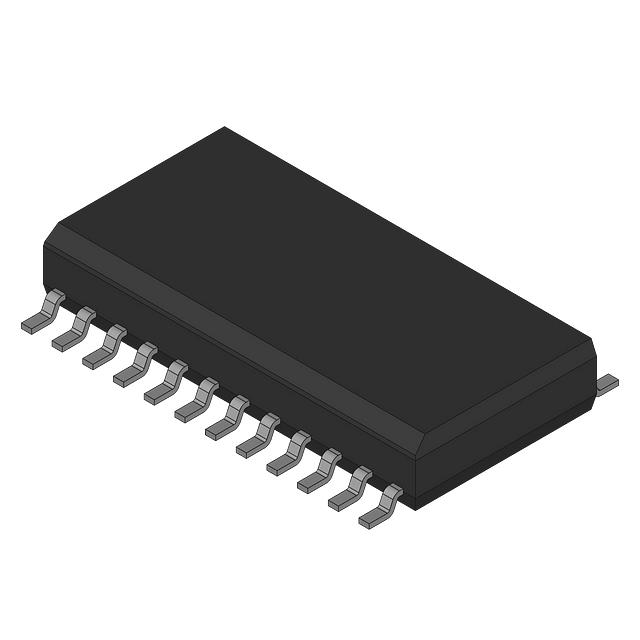

Package / Case 24-SOIC (0.295", 7.50mm Width)
Output Type Tri-State
Mounting Type Surface Mount
Number of Elements 1
Function Universal
Logic Type Register, Pipeline
Operating Temperature 0°C ~ 70°C (TA)
Voltage - Supply 4.75V ~ 5.25V
Supplier Device Package 24-SOIC
Number of Bits per Element 8

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status Vendor Undefined
RoHS Status RoHS non-compliant
