Part Number	HUFA75307D3S
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-HUFA75307D3S-FS-ND FAIFSCHUFA75307D3S 2156-HUFA75307D3S-FS
Description	MOSFET N-CH 55V 15A TO252AA
Detailed Description	N-Channel 55 V 15A (Tc) 45W (Tc) Surface Mount TO-252 (DPAK)

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Fairchild Semiconductor
Series		UltraFET™
Packaging		Tube
Part Status		Obsolete

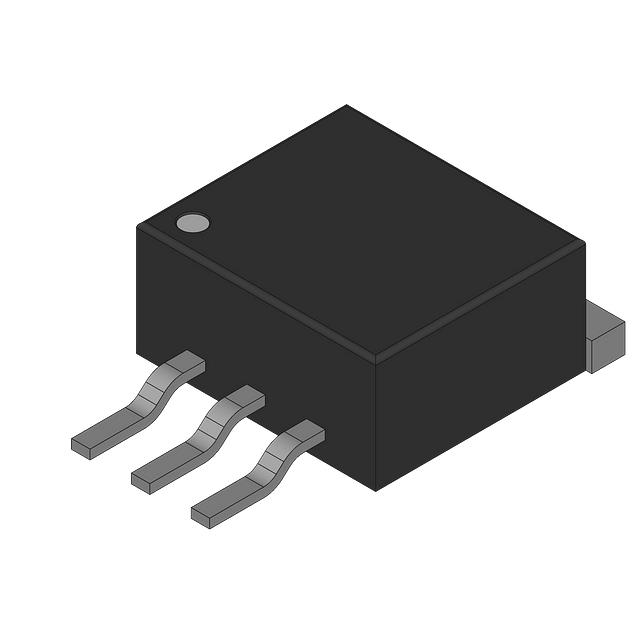

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		15A (Tc)
Rds On (Max) @ Id, Vgs		90mOhm @ 15A, 10V
Power Dissipation (Max)		45W (Tc)
Vgs(th) (Max) @ Id		4V @ 250µA
Supplier Device Package		TO-252 (DPAK)
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		55 V
Gate Charge (Qg) (Max) @ Vgs		20 nC @ 20 V
Input Capacitance (Ciss) (Max) @ Vds		250 pF @ 25 V

RESOURCE TYPE		LINK

This product is no longer manufactured.
