ICL7660CSA+ _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	ICL7660CSA+
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	ICL7660CSA+-ND -4941-ICL7660CSA+
Description	IC REG CHARG PUMP INV 20MA 8SOIC
Detailed Description	Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, nVin, Vin/2 1 Output 20mA 8-SOIC (0.154", 3.90mm Width)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tube
Part Status		Active

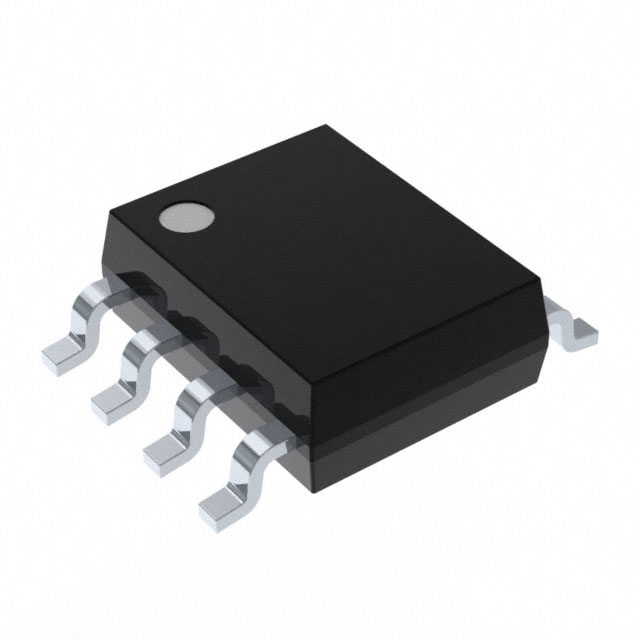

Package / Case		8-SOIC (0.154", 3.90mm Width)
Output Type		Fixed
Mounting Type		Surface Mount
Number of Outputs		1
Function		Ratiometric
Current - Output		20mA
Operating Temperature		0°C ~ 70°C (TA)
Output Configuration		Positive or Negative
Frequency - Switching		10kHz
Voltage - Input (Max)		10V
Topology		Charge Pump
Supplier Device Package		8-SOIC
Synchronous Rectifier		No
Voltage - Input (Min)		1.5V
Voltage - Output (Min/Fixed)		-Vin, nVin, Vin/2

RESOURCE TYPE		LINK
Datasheets		ICL7660CSA+
Datasheets		DC-DC Conversion Without Inductors
Datasheets		Lower Operating Frequency Improves ICL7660 Voltage-Conversion Efficiency
Datasheets		Maxim Integrated RoHS Cert
Datasheets		Maxim Integrated REACH
Datasheets		Material Declaration ICL7660CSA+

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
