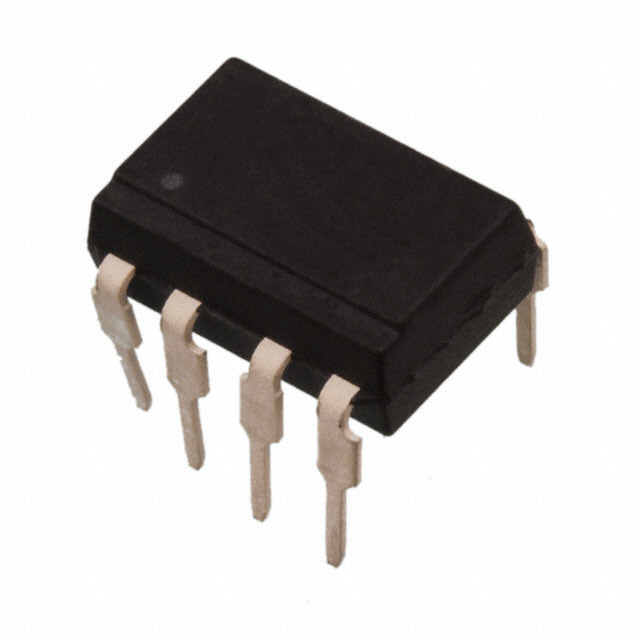

ICPL2601 _ Logic Output Optoisolators_Optoisolators_Isolators

Part Number	ICPL2601
Manufacturer	Isocom Components
Other Part Numbers	ICPL2601-ND
Description	OPTOISOLATOR 2.5KV OPN COLL 8DIP
Detailed Description	Logic Output Optoisolator 10Mbps Open Collector, Schottky Clamped 2500Vrms 1 Channel 1kV/µs CMTI 8-DIP
Manufacturer Standard Lead Time	3 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Logic Output Optoisolators
Manufacturer		Isocom Components
Series
Packaging		Tube
Part Status		Active
Package / Case		8-DIP (0.300", 7.62mm)
Output Type		Open Collector, Schottky Clamped
Mounting Type		Through Hole
Operating Temperature		0°C ~ 70°C
Voltage - Supply		7V
Voltage - Forward (Vf) (Typ)		1.55V
Data Rate		10Mbps
Input Type		DC
Voltage - Isolation		2500Vrms
Current - DC Forward (If) (Max)		20mA
Inputs - Side 1/Side 2		1/0
Supplier Device Package		8-DIP
Common Mode Transient Immunity (Min)		1kV/µs
Propagation Delay tpLH / tpHL (Max)		75ns, 75ns
Number of Channels		1
Current - Output / Channel		25 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
