IL 260E _ Digital Isolators_Isolators

Part Number	IL 260E
Manufacturer	NVE Corporation
Other Part Numbers	390-IL260E-ND 390-1068-5-ND IL260E 390-1068-5 390-IL260E
Description	DGTL ISO 2500VRMS 5CH GP 16SOIC
Detailed Description	General Purpose Digital Isolator 2500Vrms 5 Channel 110Mbps 30kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Isolators Digital Isolators
Manufacturer		NVE Corporation
Series		IsoLoop®
Packaging		Tube
Part Status		Active

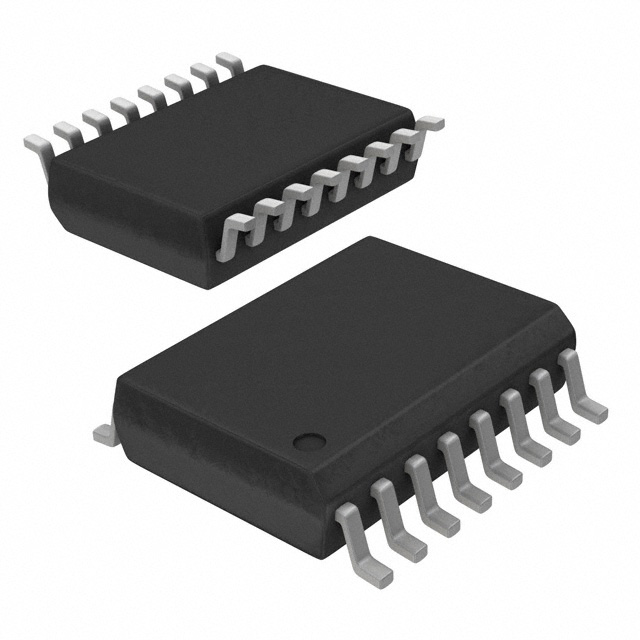

Package / Case		16-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Type		General Purpose
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		3V ~ 5.5V
Data Rate		110Mbps
Technology		GMR (Giant Magnetoresistive)
Voltage - Isolation		2500Vrms
Inputs - Side 1/Side 2		5/0
Supplier Device Package		16-SOIC
Rise / Fall Time (Typ)		1ns, 1ns
Common Mode Transient Immunity (Min)		30kV/µs
Propagation Delay tpLH / tpHL (Max)		15ns, 15ns
Isolated Power		No
Channel Type		Unidirectional
Pulse Width Distortion (Max)		3ns
Number of Channels		5

RESOURCE TYPE		LINK
Datasheets		IL 260E

ATTRIBUTE		DESCRIPTION
ECCN		5A991A
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
