Part Number |
ISL6525CB-T
|
---|---|
Manufacturer | Intersil |
Other Part Numbers |
2156-ISL6525CB-T-ILTR-ND
2156-ISL6525CB-T-ILTR
HARISLISL6525CB-T
|
Description | SWITCHING CONTROLLER |
Detailed Description | Buck Regulator Positive Output Step-Down DC-DC Controller IC 14-SOIC |
Category | ||
---|---|---|
Manufacturer | Intersil | |
Series | ||
Packaging |
Bulk
|
|
Part Status | Obsolete | |

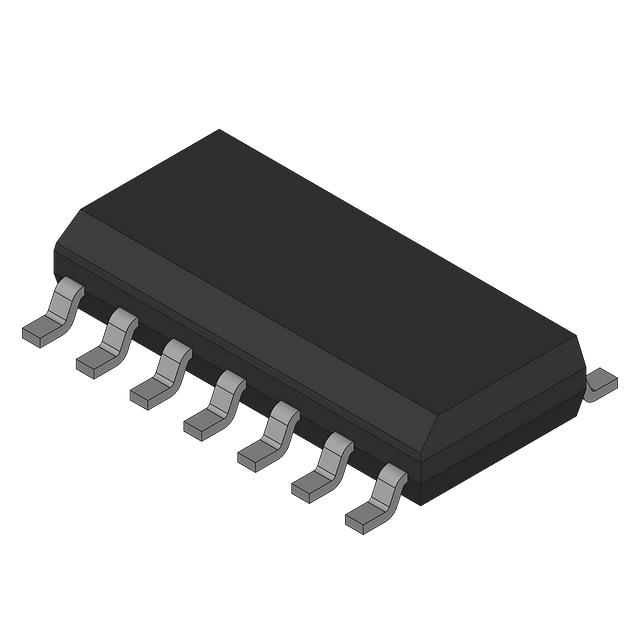

Package / Case | 14-SOIC (0.154", 3.90mm Width) | |
Output Type | Transistor Driver | |
Mounting Type | Surface Mount | |
Function | Step-Down | |
Operating Temperature | 0°C ~ 70°C (TA) | |
Output Configuration | Positive | |
Frequency - Switching | 200kHz | |
Topology | Buck | |
Voltage - Supply (Vcc/Vdd) | 10.8V ~ 13.2V | |
Supplier Device Package | 14-SOIC | |
Synchronous Rectifier | Yes | |
Control Features | Frequency Control, Phase Control, Power Good, Soft Start | |
Output Phases | 1 | |
Duty Cycle (Max) | 100% | |
Clock Sync | No | |
Number of Outputs | 1 |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
RoHS Status | RoHS non-compliant |
