Part Number	IXGT20N100
Manufacturer	Littelfuse / IXYS RF
Other Part Numbers	IXGT20N100-ND

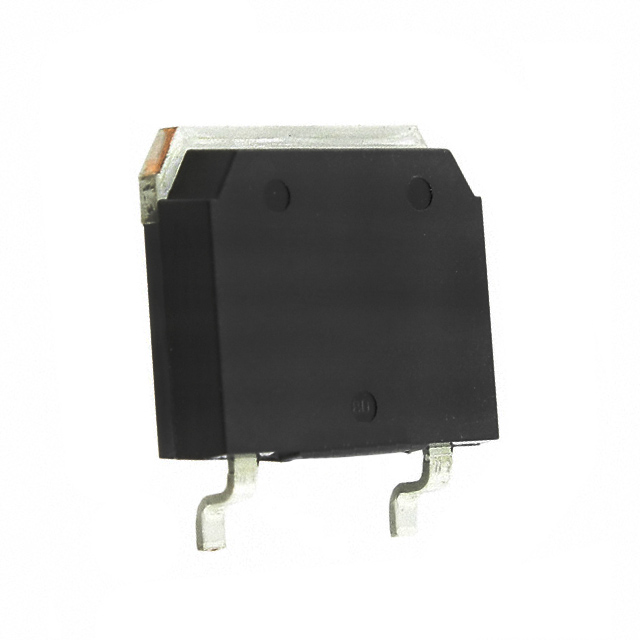

Description	IGBT PT 1000V 40A TO268AA
Detailed Description	IGBT PT 1000 V 40 A 150 W Surface Mount TO-268AA
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors IGBTs Single IGBTs
Manufacturer		Littelfuse / IXYS RF
Series
Packaging		Tube
Part Status		Active
Package / Case		TO-268-3, D3PAK (2 Leads + Tab), TO-268AA
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Input Type		Standard
Vce(on) (Max) @ Vge, Ic		3V @ 15V, 20A
Supplier Device Package		TO-268AA
IGBT Type		PT
Td (on/off) @ 25°C		30ns/350ns
Switching Energy		3.5mJ (off)
Test Condition		800V, 20A, 47Ohm, 15V
Gate Charge		73 nC
Current - Collector (Ic) (Max)		40 A
Voltage - Collector Emitter Breakdown (Max)		1000 V
Current - Collector Pulsed (Icm)		80 A
Power - Max		150 W

RESOURCE TYPE		LINK
Datasheets		IXGT20N100

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
