Part Number |

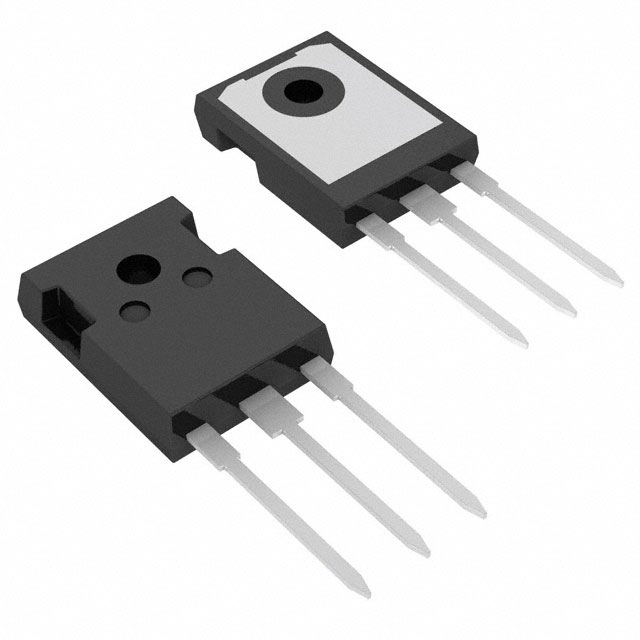

IXSH45N100
|
---|---|
Manufacturer | Littelfuse / IXYS RF |
Other Part Numbers |
IXSH45N100-ND
|
Description | IGBT 1000V 75A 300W TO247 |
Detailed Description | IGBT 1000 V 75 A 300 W Through Hole TO-247AD |
Category | ||
---|---|---|
Manufacturer | Littelfuse / IXYS RF | |
Series | ||
Packaging |
Tube
|
|
Part Status | Obsolete | |
Package / Case | TO-247-3 | |
Mounting Type | Through Hole | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Input Type | Standard | |
Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 45A | |
Supplier Device Package | TO-247AD | |
Td (on/off) @ 25°C | 80ns/400ns | |
Switching Energy | 15mJ (off) | |
Test Condition | 800V, 45A, 2.7Ohm, 15V | |
Gate Charge | 165 nC | |
Current - Collector (Ic) (Max) | 75 A | |
Voltage - Collector Emitter Breakdown (Max) | 1000 V | |
Current - Collector Pulsed (Icm) | 180 A | |
Power - Max | 300 W |
